IP300UHD-TX-WP
BLUSTREAM IP 18Gbps Multicast UHD Video Wallplate HDMI and USB-C Transmitter over 1Gb Network
BLUSTREAM IP 18Gbps Multicast UHD Video Wallplate HDMI and USB-C Transmitter over 1Gb Network
4K 60Hz 4:4:4 HDMI & USB-C Video over IP Wall Plate Transmitter via 1Gb Managed Network
Our HDMI 2.0 Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Managed Network.
The IP300UHD-WP Transmitter is an industry leading 4K HDMI 2.0 HDCP 2.2 transmitter that, using visually lossless compression technology, delivers switchable HDMI or USB-C, Bi-directional RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
The IP300UHD-WP can be powered via PoE from the network switch or locally should the switch not support PoE. The IP300UHD-WP is compatible with our IP300UHD-TX/RX and IP350UHD-TX/RX products and with multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.
Key Features
• Advanced 4K HDMI 2.0, or USB-C video over 1Gb Network
• Virtually unlimited system size
• Extends HDMI or USB-C up to a distance of 100m over a single CAT cable
• Manual and / or auto source switching of inputs
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR, HDR10+ & Dolby Vision
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of RS-232, USB/KVM, audio and video
• PoE (Power over Ethernet) to power Blustream products from PoE switch
• Local 24V power supply (should Ethernet switch not support PoE) - PSU sold separately (part code: PS241-2PH)
• HDCP 2.2 compliant with advanced EDID management
• Compatible with Blustream IP300UHD-TX/RX and IP350UHD-TX / RX products
• Dual US Decora faceplate surround and backbox compatibility
• Our IP300 Series Multicast system features flexible deployment options including:
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)
Specifications

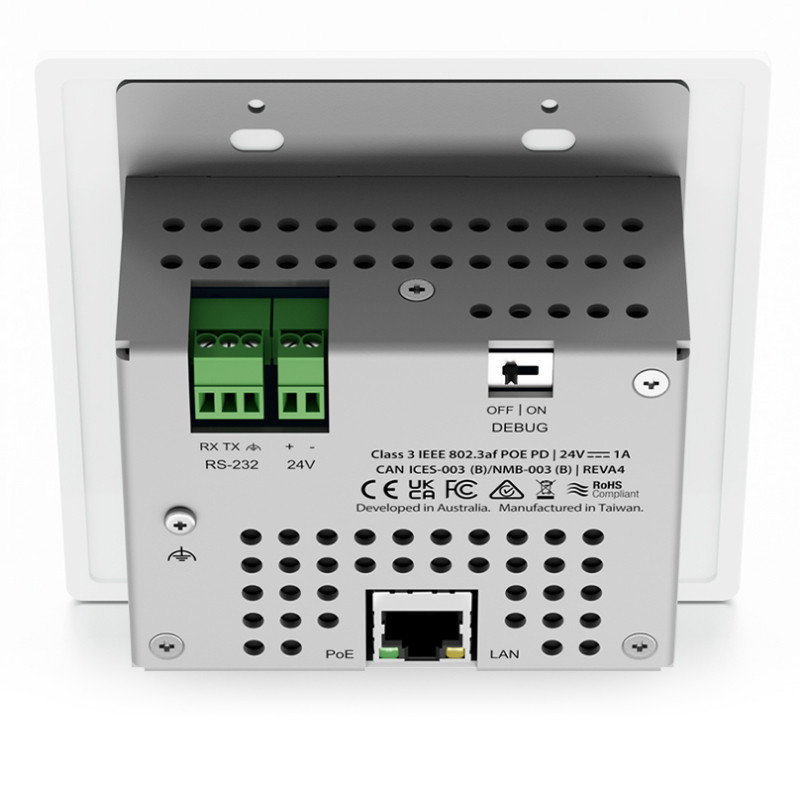

• Video input: 1 x HDMI Type A, female, 1 x USB Type C female
• Video output: 1 x LAN RJ45 connector
• Audio input: 1 x 3.5mm stereo jack
• Ethernet port: 1 x LAN RJ45 connector
• USB Charge port: 1 x USB Type C female
• USB/KVM Port: 1 x USB-Type B
• RS-232 serial port: 1 x 3-Pin Phoenix connector
• Debug Mode: 2-step switch
• Casing Dimensions (W x H x D): 90mm x 106mm x 52mm (without faceplate)
• Faceplate Dimensions (W x H x D): 115mm x 115mm x 6mm
• Backbox Mounting Depth: 45mm
• Shipping Weight: 0.6kgv
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: PoE / 24V 1A DC (PSU: PS241-2PH - sold separately)
Box Contents
• 1 x IP300UHD-WP-TX
• 1 x 2-piece Dual US Decora Faceplate (plastic) with backbox screws
