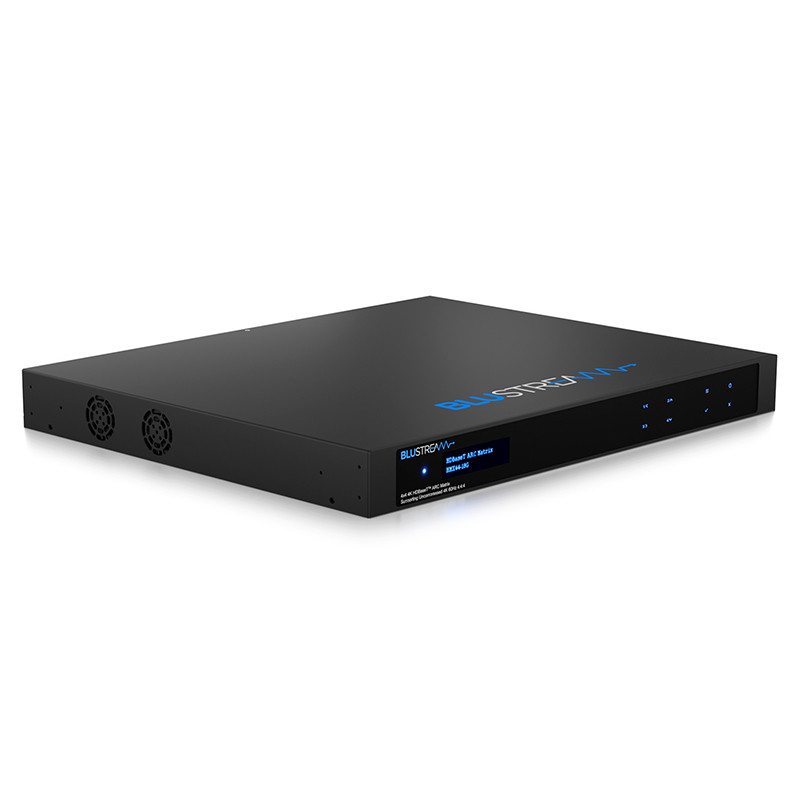

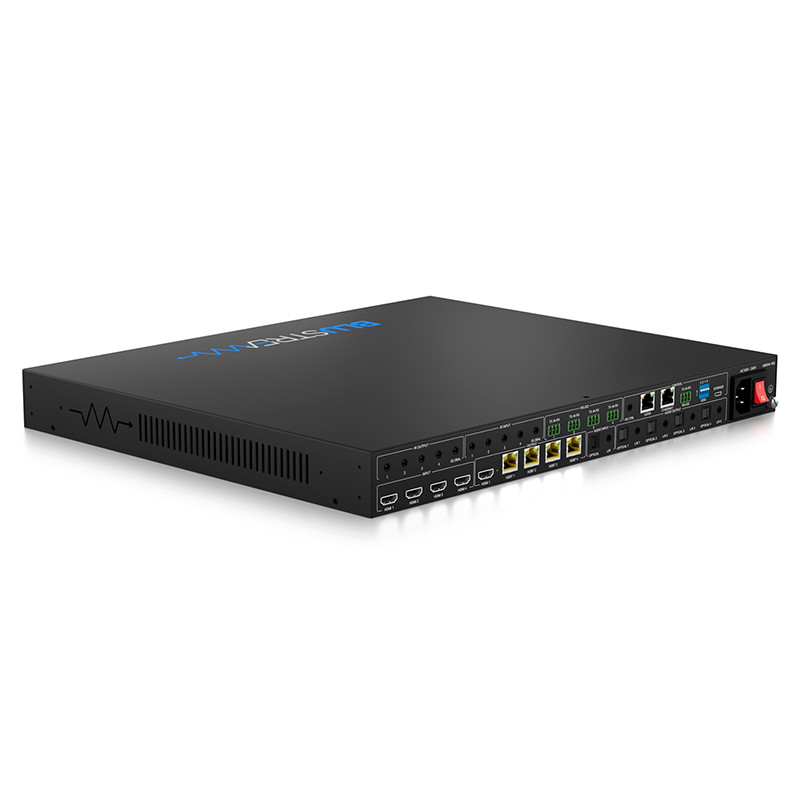

HMX44-18G-KIT

BLUSTREAM 4x4 HDBaseT3 AV Matrix Kit - 100m uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4



4x4 HDBaseT™ ARC Matrix Supporting Uncompressed 4K 60Hz 4:4:4.



The HMX44-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT™ 3 technology to deliver HDMI, Bidirectional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single CAT6A cable.


The HMX44-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.


The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video smart scaling on HDBaseT outputs, and an independent 14x4 audio matrix, and ARC. The HMX44-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and 1Gb Ethernet pass through to enable seamless 3rd party control integration.



Key Features


• Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs

• Output 1 features a simultaneous HDMI and HDBaseT™ output
• Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*

• Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
• 14x4 Audio Matrix independently controllable from video. Audio source inputs include:

- 4 x audio breakout from HDMI source inputs
- 4 x audio breakout from zone outputs

- 4 x audio return from zone outputs*
- 1 x optical and 1x analogue audio input

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)

• Web interface module for control and configuration of the Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs

• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power the supplied HDBaseT™ receivers

• Advanced EDID management and HDCP 2.3 compliant
• Supplied with 4 x RX18G HDBaseT™ Receivers



* Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling



**ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G only



Specifications
• Video Input Connectors: 4 x HDMI Type A, 19-pin, female

• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectors
• Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1 x Optical (S/PDIF)

• Audio Output Connectors: 4 x Analogue audio L/R (3.5mm stereo Jack), 4 x Optical (S/PDIF)
• RS-232 Serial Port: 5 x 3-pin phoenix connector

• TCP/IP Control Port: 1 x RJ45, female
• Ethernet Passthrough Port: 1 x RJ45, female

• IR Input Ports: 6 x 3.5mm stereo jack
• IR Output Ports: 5 x 3.5mm mono jack

• Product Upgrade Port: 1 x Micro USB, female
• Rack Mountable: 1U rack height, rack ears included

• Casing Dimensions (W x H x D): 436mm x 360mm x 44mm (without feet)
• Shipping Weight: 8.7kg

• Operating Temperature: 23°F to 131°F (-5°C to +55°C)
• Storage Temperature: -13°F to 158°F (-25°C to +70°C)

• Power Supply: Internal 100-240V AC • HDBaseT Power Output: 24V DC 0.75A per port



Box Contents
• 1 x HMX44-18G

• 4 x RX18G
• 1 x Rack mounting kit

• 1 x Remote control
• 4 x IR emitters

• 5 x IR receivers
• 1 x Serial Cable - DB9 to 3-pin phoenix connector

• 1 x IR Control Cable - 3.5mm-3.5mm Cable
• IEC Power Cable(s)

• 1 x Quick Reference Guide
