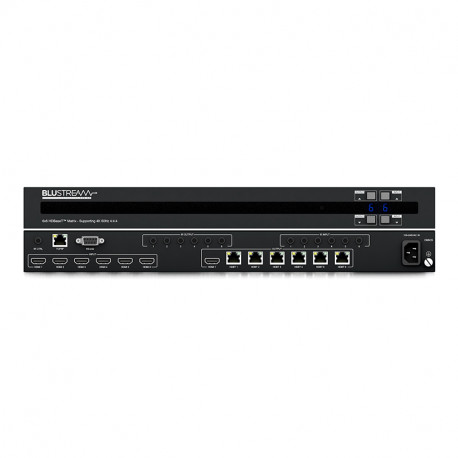

BLUSTREAM Contractor 6x6 HDBaseT CSC Matrix - 1080p to 70m
Contractor 6x6 HDBaseT™ CSC Matrix - 70m (4K up to 40m), Bi-directional IR, PoC, Simultaneous HDMI / HDBaseT™ on Output 1, Video Down-scaling on HDBaseT™ Outputs, RS-232 & TCP/IP Control, HDCP 2.2 Compliant, Web GUI
Description
Our Contractor 6x6 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.
The C66CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).
The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for major control brands
• 1U Design for 19" rack mount integration - mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant
• Recommended receiver: RX70CS (where 18Gbps CSC support is required)
*For 18Gbps CSC support use RX70CS receivers
Specifications
• Video Input Connectors: 6 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 6 x HDBaseT™ RJ45 connector
• RS-232 Serial Port: 1 x DB9 Serial connector
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 7 x 3.5mm stereo jack
• IR Output Ports: 6 x 3.5mm mono jack
• Rack Mountable: 1U rack height, rack ears included
• Case Dimensions (without feet & connections) (W x D x H): 437mm x 377mm x 44mm
• Case Dimensions (with feet & connections) (W x D x H): 437mm x 384mm x 53mm
• Shipping Weight: 6.25kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: Internal 100-240V AC
Box Contents
• 1 x C66CS
• 1 x Rack Mounting Kit
• 1 x Remote Control
• 6 x IR Emitters
• 7 x IR Receivers
• 1 x RS-232 Control Cable
• 1 x IR Control Cable - 3.5mm-3.5mm Cable
• 1 x Quick Reference Guide
• Power Cable(s)
