PM16

PM16

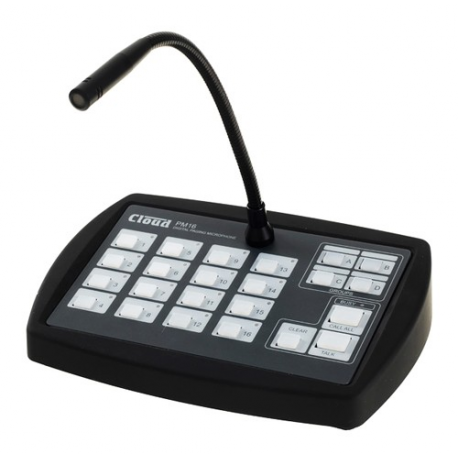

Cloud 12-Zone Digital Paging Microphone, analogue interface, electret condenser, cardioid, Cat5


Cloud 12-Zone Digital Paging Microphone, analogue interface, electret condenser, cardioid, Cat5

16 Zone Paging Microphone
PM16

The PM Range of Paging Microphones are designed for general purpose multizone applications and can also be used with non-Cloud products.

Four models of the PM are available: the PM4, PM8, PM12 and PM16. The models differ only in the number of zone select buttons on the front panel (4, 8, 12 or 16 respectively), and consequently in the maximum of zones that can be supported.
The PM is designed to interface directly with recent Cloud products - such as the DCM1 - via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.

The PM is also compatible with the older Cloud CDPM range of digital paging microphones. PM microphones and CDPM microphones may be freely intermixed on the Digital Paging Interface.

Features:
• Individual and multiple zone selection
• Defineable zone groups with group selection
• Pre-announcement chime with internal chime sounder
• "Talk" and "Call-all" buttons
• "Busy" LED
• Configurable two-layer announcement priority system
• Auto-zone reset after announcement
• Zone disable function
Frekvensomfång
80 - 16 000 Hz
Känslighet 1V/ubar
68 ± 3 dB
