NP-5

InOut Spelare m. microSD-kortslot, klass D förstärkare stereo 15+15W, 8 logic portar, inkl. 12Vdc PSU

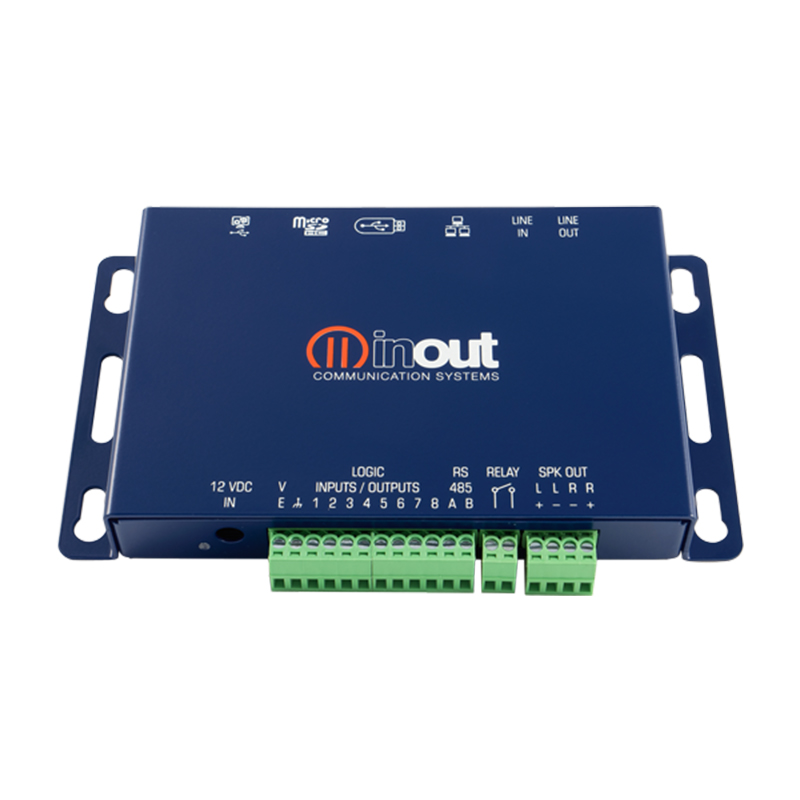

NP-5 is an amplified audio player that simplifies the creation of interactive projects, didactic pathways, informative totems for exhibitions, musical scenarios, commercial spaces, relax areas and many more. NP-5 is a high-tech device of small dimensions, a flat metallic container suitable for any application in small spaces.

It includes:
• Interactive audio player with microSD card slot;
• Class D Amplifier stereo 15+15W;
• 8 individually configurable logic ports, both as inputs (for sequential playback of audio files) for switches or touch-sensor, or as outputs for external relay activation;
• Ethernet LAN 10/100 port for I/O configuration, event schedule, track selection and control remote by 3rd parts systems;
• RS485 serial port for optional remote control;
• Audio Mixer for external stereo/mono source;

Main features:
• Main voltage of 12VDC (PSU included).
• ARM Cortex® Processor.
• Multidrive Storage, with files kept in removable microSD-HC flash memory (FAT 32)
• Preamplified L+R stereo audio input for external music source.
• Preamplified L+R stereo audio output (0dB).
• Amplified stereo audio output 15W+15W.
• 8 logic on/off ports individually configurable as input or output.
• 1 programmable relay output.
• Daily scheduling function.
• LAN Ethernet port.
• Firmware Upgrade with web page

Input Output:
• Preamplified L+R stereo audio input for external music source with mixer function.
• Preamplified L+R stereo audio output (0dB).
• Amplified stereo audio output 15W+15W/8ohm.
• 8 logic on/off ports individually configurable as input or output.
• Logic inputs for playlist or file activation or player control (play/stop/next/previous/volume).
• Logic outputs for the simple control of external devices (relays, etc.)
• Programmable relay output
• RS485 control port for remote control
• 1 x USB 2.0 type A connector device(host) for Flash pen drive.
• 1 x MicroSD port (Content Storage)
• 1 x Ethernet LAN 10/100 port for I/O configuration, 1 event schedule, track selection and remote control systems

Functions:
• Supported lossy audio formats: MP3.
• Internal DSP with mixing function for all audio inputs.
• WEB Server for configuration (LAN settings, clock, etc.).
• Scheduling function n.1 daily event
• Playlist creation
• LAN TCP/IP control
• RTC - Integrated real time clock with backup battery (schedule)
• Firmware Upgrade with web page
• Keyboard managements (12 keys).
• Size: 147x84x19 mm
• Weight: 250 gr
• Operating temperature: 0° to +60°C.
• Storage temperature: -20° to +60°C.
