CAT100AU

BLUSTREAM Digital Audio over CAT - 100m

Digital Audio Over CAT

Description
Our CAT100AU Audio over CAT5e/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to 100m).

This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output from either input.

Key Features
• Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable
• Both optical and coaxial digital can be distributed at the same time
• Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left/right audio output (source selected on receiver unit)
• Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution
• Ultra low jitter and high fidelity design

*CAT100AU supports distances of up to: 192kHz - 100m; 96kHz - 150m; < 48kHz - 300m

Specifications

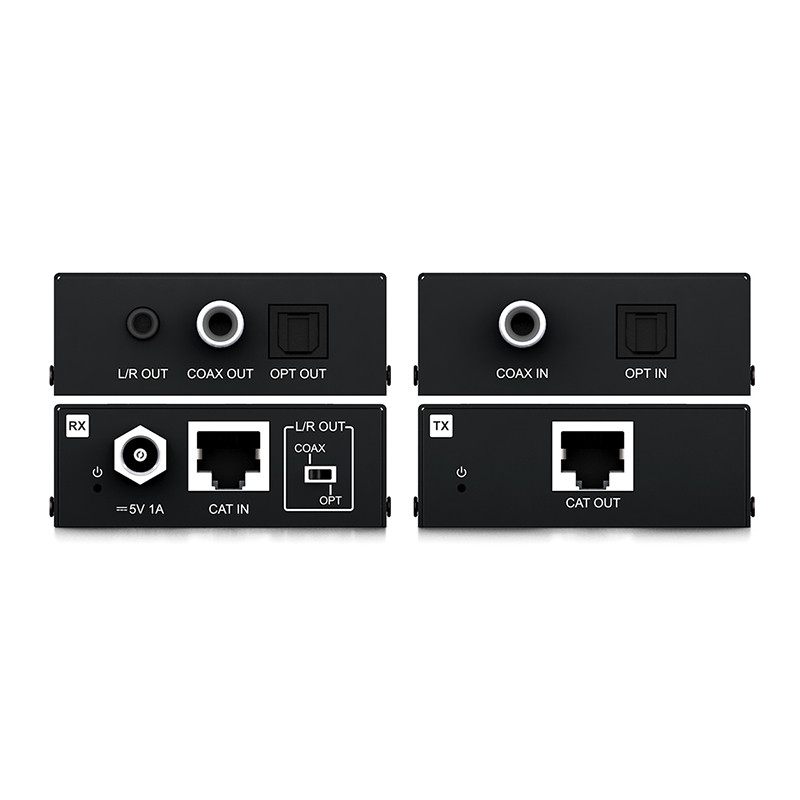

• CAT100AU-TX:
- Audio Input Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)
- Output Connectors: 1 x RJ45
• CAT100AU-RX:
- Input Connectors: 1 x RJ45 & 5V/1A DC
- Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analogue left / right - 3.5mm stereo audio jack
• Balun Dimensions (W x D x H): 65 x 80 x 25mm (with connections)
• Balun Dimensions (W x D x H): 65 x 70 x 25mm (without connections)
• Ind. Balun Weight: 0.13kg (excluding accessories)
• Carton / Box Dimensions (W x D x H): 210 x 125 x 95mm
• Shipping Weight: 0.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC, barrel type connector
• Power supplied to the transmitter unit from the receiver

Box Contents
1 x CAT100AU-TX
1 x CAT100AU-RX
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual
