DYNACORD Controller till PROMATRIX 6000 system
▪ Low power consumption in standby mode
▪ Extreme flexibility
▪ Excellent sound quality >106 dB s/n ratio
▪ Up to 85 minutes internal digital message storage

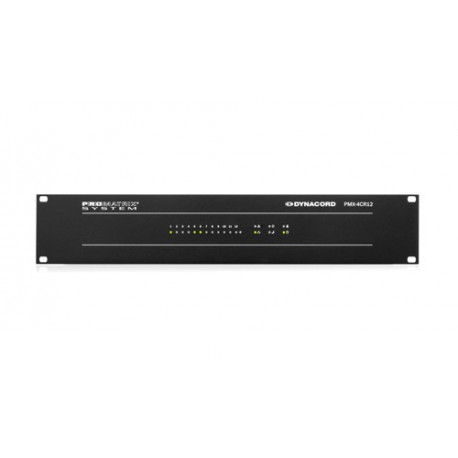

The PMX-4CR12 controller is the central paging manager for the PROMATRIX 6000 system. Eight local audio inputs can be
switched to four audio outputs. A two-channel message manager is integrated. The controller provides all the audio
processing, supervision and control functions for a complete PROMATRIX 6000 system. A single controller supports up to 16
call stations and 492 paging zones. The controller is equipped with 12 zones, 18 GPIs and 19 GPOs. One controller can handle
up to 2000 W loudspeaker load. Additional zones and power can be added by using up to 20 external routers and 40 amplifiers
with each 2 ✕ 500 W.
The zone indicator lights on the front indicate the current status of every zone:
• Green: Zone in use for non-emergency purpose
• Red: Zone in use for emergency purpose
• Yellow: Zone fault detected
• Off: Zone in idle condition
▪ Low power consumption in standby mode
▪ Extreme flexibility
▪ Excellent sound quality >106 dB s/n ratio
▪ Up to 85 minutes internal digital message storage
The PMX-4CR12 controller is the central paging manager for the PROMATRIX 6000 system. Eight local audio inputs can be
switched to four audio outputs. A two-channel message manager is integrated. The controller provides all the audio
processing, supervision and control functions for a complete PROMATRIX 6000 system. A single controller supports up to 16
call stations and 492 paging zones. The controller is equipped with 12 zones, 18 GPIs and 19 GPOs. One controller can handle
up to 2000 W loudspeaker load. Additional zones and power can be added by using up to 20 external routers and 40 amplifiers
with each 2 ✕ 500 W.
The zone indicator lights on the front indicate the current status of every zone:
• Green: Zone in use for non-emergency purpose
• Red: Zone in use for emergency purpose
• Yellow: Zone fault detected
• Off: Zone in idle condition
