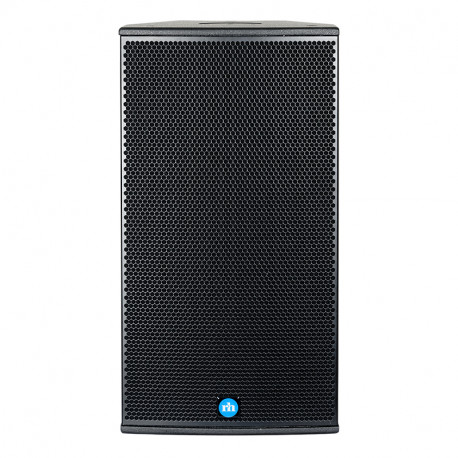

RH - TX121 2-Way, 12" Full Range Loudspeaker
TX/TA121
Two-Way Complex Conic Loudspeaker Systems

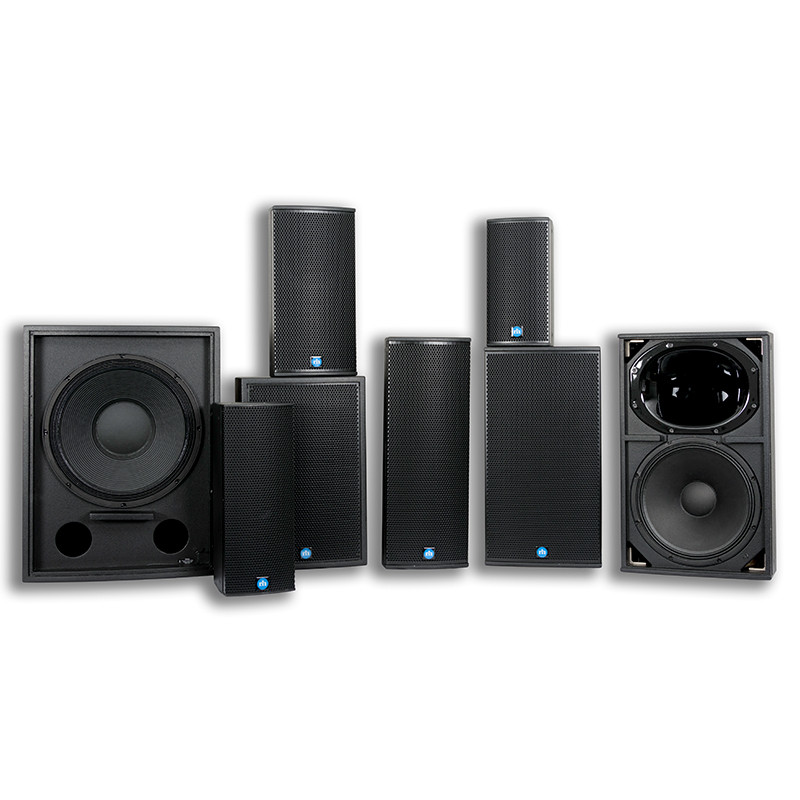

Every T Series loudspeaker is engineered by Renkus-Heinz to unrivaled standards of quality and innovation. Before we’ll ship them, your loudspeakers have to meet our exacting requirements, for performance that will make you proud and durability that will keep you sounding great.
T121
12-Inch Heavy Duty Woofer + 2-inch Titanium HF Driver
Sound that makes performances and audiences truly come alive doesn’t come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.
The T121 features a 12-inch heavy duty woofer and a 2-inch titanium HF driver.
TA121 Powered Loudspeakers
Equipped with SA1250 Series Amplification
TX121 Non-Powered Loudspeakers
For use with external amplification
Key Features
• Compact Design
Outstanding, full-range ± 3 dB, 60 Hz to 18 kHz performance in a compact, space-saving design.
• Exclusive 90° x 40° Complex Conic Design
Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
• 2-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 18 kHz and beyond.
• Heavy-Duty 12-inch Woofer
Easily handles 600 Watts of program power.
• Built-in Crossover
Includes EQ and high frequency protection; in the T121 eliminates need for a separate electronic crossover and bi-amplification.
If you need an outstanding high-power 12-inch 2-way system, order the T121.
Applications
• Virtually any application where size is a critical issue and outstanding sonic performance is required.
Permanent Installations
• Ideal compact main PA for music and speech or as part of a high output distributed system in larger venues.
• Houses of worship, schools, performing art centers, night clubs, stadiums and arenas.
Portable Applications
• Ideal main PA for unobtrusive live music and speech reinforcement or as fill coverage in larger systems.
• Rental A/V, DJ systems, churches, schools, etc.
Specification
Technical Information
Sensitivity:
All Models — 97 dB (1W/1m)
Max SPL:
TX121 — 128 dB, Peak
TA121-A — 127 dB, Peak
TA121-RN — 127 dB, Peak
TA121-RD — 127 dB, Peak
Dispersion:
TX121 — 60° H x 40° V or 90° H x 40° V Rotatable
TA121-A — 60° H x 40° V or 90° H x 40° V Rotatable
TA121-RN — 60° H x 40° V or 90° H x 40° V Rotatable
TA121-RD — 60° H x 40° V or 90° H x 40° V Rotatable
Freq. Response:
TX121 — ± 3 dB, 60 Hz to 20 kHz
TA121-A — ± 3 dB, 60 Hz to 20 kHz
TA121-RN — ± 3 dB, 60 Hz to 20 kHz
TA121-RD — ± 3 dB, 60 Hz to 20 kHz
HF Driver:
TX121 — SSD1747-8 driver, 60 W AES @ 8 ohms
TA121-A — SSD1747-8 driver, 60 W AES @ 8 ohms
TA121-RN — SSD1747-8 driver, 60 W AES @ 8 ohms
TA121-RD — SSD1747-8 driver, 60 W AES @ 8 ohms
LF Driver:
TX121 — SSL12-26, 350 W AES @ 8 ohms
TA121-A — SSL12-26, 350 W AES @ 8 ohms
TA121-RN — SSL12-26, 350 W AES @ 8 ohms
TA121-RD — SSL12-26, 350 W AES @ 8 ohms
Power Handling:
TX121 — 350 W AES @ 8 Ohms, 700 W Pgm @ 8 Ohms
TA121-A — See SA1250 Amplifier
TA121-RN — See SA1250 Amplifier
TA121-RD — See SA1250 Amplifier
Connectors:
TX121 — Screw terminals & looping 4-pin Neutrik Speakon style connectors
TA121-A — See SA1250 Amplifier
TA121-RN — See SA1250 Amplifier
TA121-RD — See SA1250 Amplifier
Enclosure:
TX121 — 19 mm Lite Ply, perforated metal grille
TA121-A — 19 mm Lite Ply, perforated metal grille
TA121-RN — 19 mm Lite Ply, perforated metal grille
TA121-RD — 19 mm Lite Ply, perforated metal grille
Hardware:
TX121 — 12-point Universal Mounting Hardware, (Metric M10 threads), M10 U-bracket attachment points
TA121-A — 12-point Universal Mounting Hardware, (Metric M10 threads), M10 U-bracket attachment points
TA121-RN — 12-point Universal Mounting Hardware, (Metric M10 threads), M10 U-bracket attachment points
TA121-RD — 12-point Universal Mounting Hardware, (Metric M10 threads), M10 U-bracket attachment points
Finish:
TX121 — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
TA121-A — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
TA121-RN — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
TA121-RD — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
Dimensions:
TX121 — 27″ H x 14-3/8″ W x 14-1/4″ D, 686 x mm H x 365 mm W x 362 mm D
TA121-A — 27″ H x 14-3/8″ W x 14-1/4″ D, 686 x mm H x 365 mm W x 362 mm D
TA121-RN — 27″ H x 14-3/8″ W x 14-1/4″ D, 686 x mm H x 365 mm W x 362 mm D
TA121-RD — 27″ H x 14-3/8″ W x 14-1/4″ D, 686 x mm H x 365 mm W x 362 mm D
Weight:
TX121 — 45 lbs / 20.4 kg, Net
TA121-A — 45 lbs / 20.4 kg, Net
TA121-RN — 45 lbs / 20.4 kg, Net
TA121-RD — 45 lbs / 20.4 kg, Net
SA1250 Amplifier Specifications
Audio Connections:
TA121-A
2 x XLR-3, In & Loop-out, Analog
TA121-RN
2 x XLR-3, In & Loop-out, Analog and AES
TA121-RD
2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections:
TA121-RN
2 x RJ45, Looping Ethernet/RHAON
TA121-RD
2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
Maximum Input Level:
TA121-A — +22 dBu, Analog
TA121-RN — +22 dBu, Analog, 0 dBFS digital
TA121-RD — +22 dBu, Analog, 0 dBFS digital
User DSP:
TA121-RN — Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
TA121-RD — Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software:
TA121-RN — RHAON II
TA121-RD — RHAON II
Latency:
TA121-A — 6.25 ms
TA121-RN — 6.25 ms
TA121-RD — 6.25 ms + Dante transport latency
Power Output:
TA121-A — LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
TA121-RN — LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
TA121-RD — LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage:
TA121-A — 100-240 volts, 50/60 Hz auto-switching
TA121-RN — 100-240 volts, 50/60 Hz auto-switching
TA121-RD — 100-240 volts, 50/60 Hz auto-switching
Power Consumption:
TA121-A — Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
TA121-RN — Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
TA121-RD — Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
Power Connector:
TA121-A — Neutrik powerCON TRUE-1
TA121-RN — Neutrik powerCON TRUE-1
TA121-RD — Neutrik powerCON TRUE-1
Temprature Limits:
TA121-A — Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
TA121-RN — Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
TA121-RD — Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
