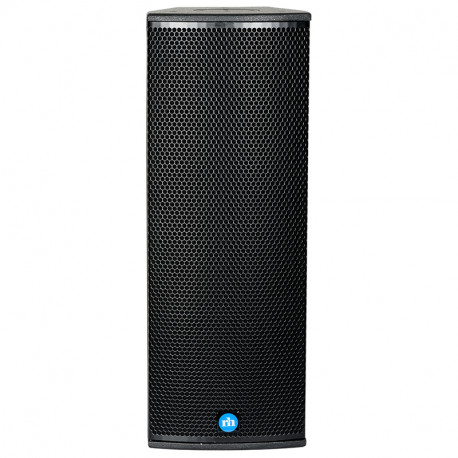

RH - TX82 2-Way, 2 x 8 Full Range Loudspeaker
TX/TA82
Two-Way Complex Conic Loudspeaker System
T Series loudspeakers employ advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality. Cutting-edge driver technology and unique innovations like our Complex Conic horns deliver natural sounding music and intelligible speech.
Versatile enclosure designs, combined with a wide range of mounting options and associated hardware, provide unrestricted flexibility for both portable and installed applications. Wherever audiences and operators demand superior performance and ease of use, T Series loudspeakers are the choice for unequalled value.
T82
Two-Way Complex Conic Loudspeaker System
The T82 features dual 8-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.
TA82 Powered Loudspeakers
Equipped with SA625 Series Amplification
TX82 Non-Powered Loudspeakers
For use with external amplification
Key Features
• Miniaturized Design
Outstanding, full-range 90 Hz to 20 kHz performance in a extremely compact, space-saving design.
• Exclusive Complex Conic Design
Complex Conic Horn provides superior pattern control with
low distortion.
• Coverage Pattern
Complex Conic Horn provides smooth 120º x 60º coverage.
• 1-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Dual Heavy-Duty 8-inch Woofers
With carbon fiber cones easily handles 500 Watts of program power.
• Built-in Crossover
Eliminates need for a separate electronic crossover and bi-amplification.
Applications
• Virtually any application where size is a critical issue and high output and outstanding sonic performance is required.
• Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings, under and
over balconies, etc.
• Foreground music systems in shopping malls, retail stores, offices, etc.
• Multi-channel playback systems in dance clubs (with optional subwoofers), compact floor monitors, cue loudspeakers for live music, etc.
Specification
Technical Information
Sensitivity: TX82 — 99 dB (1W/1m)
Max SPL:
TX82 — 129 dB, Peak
TA82-A — 126 dB, Peak
TA82-RN — 126 dB, Peak
TA82-RD — 126 dB, Peak
Dispersion:
TX82 — 120° H x 60° V or 90° H x 60° V Rotatable
TA82-A — 120° H x 60° V or 90° H x 60° V Rotatable
TA82-RN — 120° H x 60° V or 90° H x 60° V Rotatable
TA82-RD — 120° H x 60° V or 90° H x 60° V Rotatable
Freq. Response:
TX82 — ± 3 dB, 90 Hz to 20 kHz
TA82-A — ± 3 dB, 90 Hz to 20 kHz
TA82-RN — ± 3 dB, 90 Hz to 20 kHz
TA82-RD — ± 3 dB, 90 Hz to 20 kHz
HF Driver:
TX82 — 1″ Titanium driver, model SSD1445-16; 20 W AES
TA82-A — 1″ Titanium driver, model SSD1445-16; 20 W AES
TA82-RN — 1″ Titanium driver, model SSD1445-16; 20 W AES
TA82-RD — 1″ Titanium driver, model SSD1445-16; 20 W AES
LF Driver:
TX82 — Dual, 8″ woofer, model SSL8-20; 1″ VC; 125 W AES @ 16 Ohms
TA82-A — Dual, 8″ woofer, model SSL8-20; 1″ VC; 125 W AES @ 16 Ohms
TA82-RN — Dual, 8″ woofer, model SSL8-20; 1″ VC; 125 W AES @ 16 Ohms
TA82-RD — Dual, 8″ woofer, model SSL8-20; 1″ VC; 125 W AES @ 16 Ohms
Power Rating:
TX82 — 250 W AES @ 8 Ohms, 500 W Pgm @ 8 Ohms
TA82-A — See SA625 Amplifier
TA82-RN — See SA625 Amplifier
TA82-RD — See SA625 Amplifier
Connectors:
TX82 — Screw terminals & looping 4-pin Neutrik Speakon style connectors
TA82-A — See SA625 Amplifier
TA82-RN — See SA625 Amplifier
TA82-RD — See SA625 Amplifier
Enclosure:
TX82 — 19 mm Lite Ply, perforated metal grille
TA82-A — 19 mm Lite Ply, perforated metal grille
TA82-RN — 19 mm Lite Ply, perforated metal grille
TA82-RD — 19 mm Lite Ply, perforated metal grille
Hardware:
TX82 — 12-point Universal Mounting Hardware, (Metric M6 threads), M10 U-bracket attachment points
TA82-A — 12-point Universal Mounting Hardware, (Metric M6 threads), M10 U-bracket attachment points
TA82-RN — 12-point Universal Mounting Hardware, (Metric M6 threads), M10 U-bracket attachment points
TA82-RD — 12-point Universal Mounting Hardware, (Metric M6 threads), M10 U-bracket attachment points
Finish:
TX82 — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
TA82-A — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
TA82-RN — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
TA82-RD — Black or White Paint, standard. Custom Color, Weather Resistant, optional.
Dimensions:
TX82 — 28-1/2″ H x 10-5/16″ W x 10-1/2″ D, 724 mm H x 262 mm W x 267 mm D
TA82-A — 28-1/2″ H x 10-5/16″ W x 10-1/2″ D, 724 mm H x 262 mm W x 267 mm D
TA82-RN — 28-1/2″ H x 10-5/16″ W x 10-1/2″ D, 724 mm H x 262 mm W x 267 mm D
TA82-RD — 28-1/2″ H x 10-5/16″ W x 10-1/2″ D, 724 mm H x 262 mm W x 267 mm D
Weight:
TX82 — 34 Lbs / 15.4 kg, Net
TA82-A — 34 Lbs / 15.4 kg, Net
TA82-RN — 34 Lbs / 15.4 kg, Net
TA82-RD — 34 Lbs / 15.4 kg, Net
SA625 Amplifier Specifications
Audio Connections:
TA82-A
2 x XLR-3, In & Loop-out, Analog
TA82-RN
2 x XLR-3, In & Loop-out, Analog & AES
TA82-RD
2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections:
TA82-RN
2 x RJ45, Looping Ethernet/RHAON
TA82-RD
2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
Maximum Input Level:
TA82-A — +22 dBu, Analog
TA82-RN — +22 dBu, Analog, 0 dBFS digital
TA82-RD — +22 dBu, Analog, 0 dBFS digital
User DSP:
TA82-RN — Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
TA82-RD — Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software:
TA82-RN — RHAON II
TA82-RD — RHAON II
Latency:
TA82-A — 6.25 ms
TA82-RN — 6.25 ms
TA82-RD — 6.25 ms + Dante transport latency
Power Output:
TA82-A — LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
TA82-RN — LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
TA82-RD — LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage:
TA82-A — 100-240 volts, 50/60 Hz auto-switching
TA82-RN — 100-240 volts, 50/60 Hz auto-switching
TA82-RD — 100-240 volts, 50/60 Hz auto-switching
Power Consumption:
TA82-A — Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
TA82-RN — Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
TA82-RD — Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
Power Connector:
TA82-A — Neutrik powerCON TRUE-1
TA82-RN — Neutrik powerCON TRUE-1
TA82-RD — Neutrik powerCON TRUE-1
Temprature Limits:
TA82-A — Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
TA82-RN — Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
TA82-RD — Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
