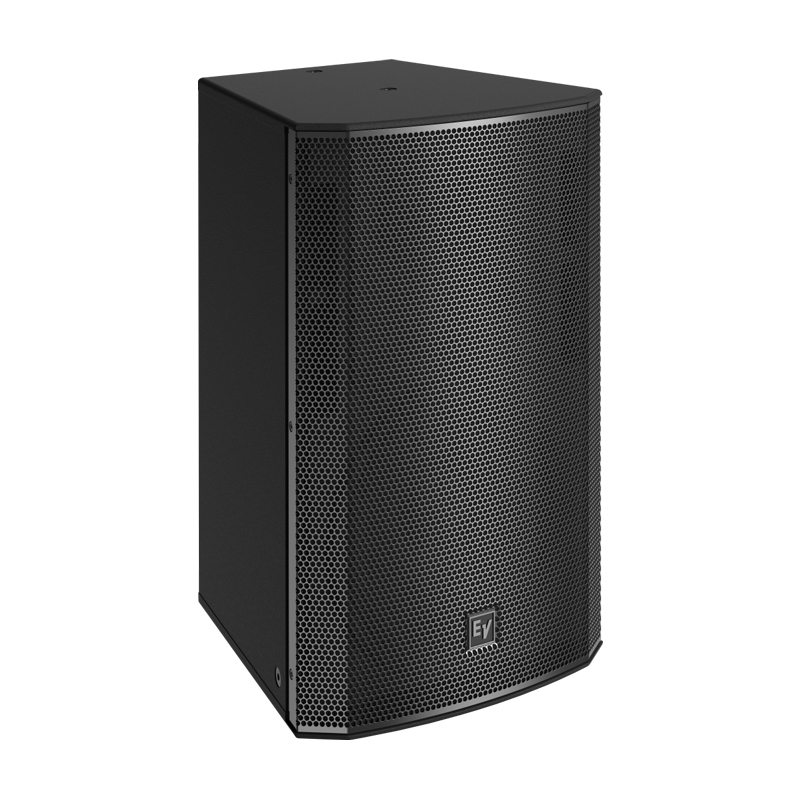

EV 12" speaker, 60x45 indoor, black
• 12-inch, two-way loudspeaker, with 60˚ x 45˚ constant directivity, rotatable waveguide
• Power rating: 300 W Continuous, (1200 Peak)
• Passive system: 95 dB, 126 dB maximum
• Gland nut cover and stainless steel grille on PI versions
• Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines
EVC standard versions utilize weatherized components. This includes woofer cone treatment, compression driver construction, weatherized grill and EVCoated plywood with water resistant adhesives. The external surfaces are treated to withstand UV exposure.
An loudspeaker installation meets IP44 criteria and can be mounted in an outdoor environment if the following conditions are met:
• Installed under a roof with no direct rain or water exposure
• Minimum downward angle of 5 degrees on every box
• Gland nut input terminal cover (sold separately) must be used. See terminal covers: CSG, CDG or CDNL4
• Maintenance and checks are performed as described by the product manual
EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).
The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.
The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.
For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.
• 12-inch, two-way loudspeaker, with 60˚ x 45˚ constant directivity, rotatable waveguide
• Power rating: 300 W Continuous, (1200 Peak)
• Passive system: 95 dB, 126 dB maximum
• Gland nut cover and stainless steel grille on PI versions
• Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines
EVC standard versions utilize weatherized components. This includes woofer cone treatment, compression driver construction, weatherized grill and EVCoated plywood with water resistant adhesives. The external surfaces are treated to withstand UV exposure.
An loudspeaker installation meets IP44 criteria and can be mounted in an outdoor environment if the following conditions are met:
• Installed under a roof with no direct rain or water exposure
• Minimum downward angle of 5 degrees on every box
• Gland nut input terminal cover (sold separately) must be used. See terminal covers: CSG, CDG or CDNL4
• Maintenance and checks are performed as described by the product manual
EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).
The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.
The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.
For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.
