Aiphone

AX-084C

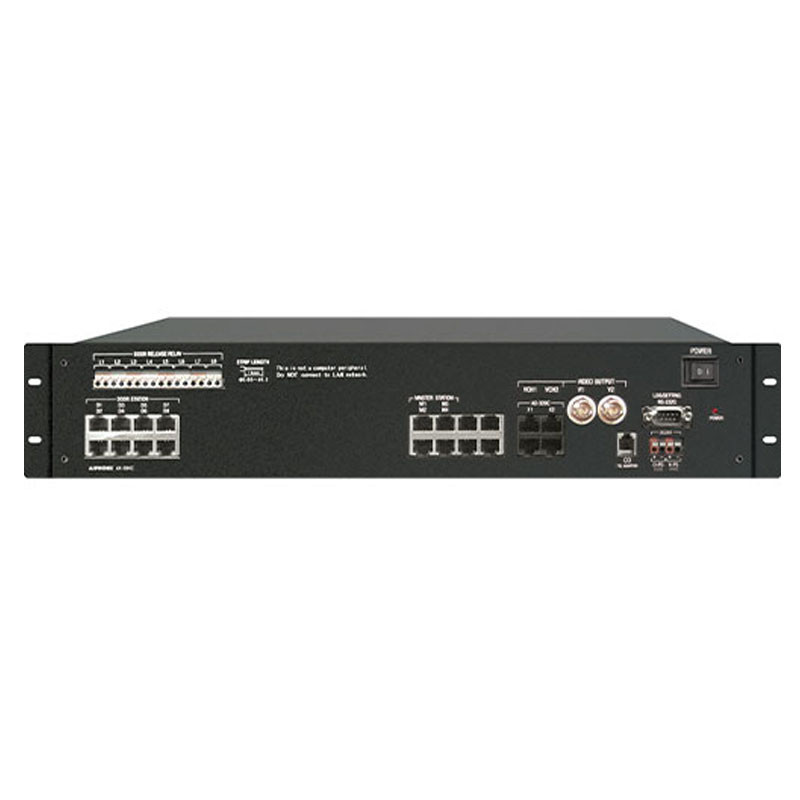

AIPHONE Central control unit, 4 masters and 8 doors

Logga in för priser

Artikelnr. AP-AX084C

AIPHONE Central control unit, 4 masters and 8 doors

Central Exchange Unit for 8 Doors / Subs, 4 Masters.

Features
• Wiring hub for AX system using Cat-5e
• Two 24V DC power supply input terminals
• Rack mountable
• Controls all functionality of AX system
• Two BNC composite video outputs and video switching triggers
• CO line transfer (requires Viking K-1900-5 programmable auto-dialer)
• Programmable functionality via supplied software

Specifications
• Consumption: Video: 0.62A max. Audio: 0.65A max
• CO Line Port: RJ11 for Viking K-1900-5 programmable auto-dialer
• Door Release: Programmable dry contact, 24V AC/ DC, 500mA - use EL-12S (use RY-24L for larger contact rating)
• Mounting: 19" EIA rack (2U) or wall mount
• Wire Type: Between Door / Sub Station, Master Station, and Central Exchange Unit: Cat-5e, Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 2-cond., overall shield - use Aiphone 821802
• Wire Distance: Door / Sub Station to Central Exchange Unit and Add-On Central Exchange Unit: 980', Central Exchange Unit to Master: 980', Central Exchange Unit to Add-On Central Exchange Unit: 16', Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 16'(22AWG) 33'(18AWG)

Manual

Nerladdning (5.26M)
