AIPHONE Video door station w/hearing aid

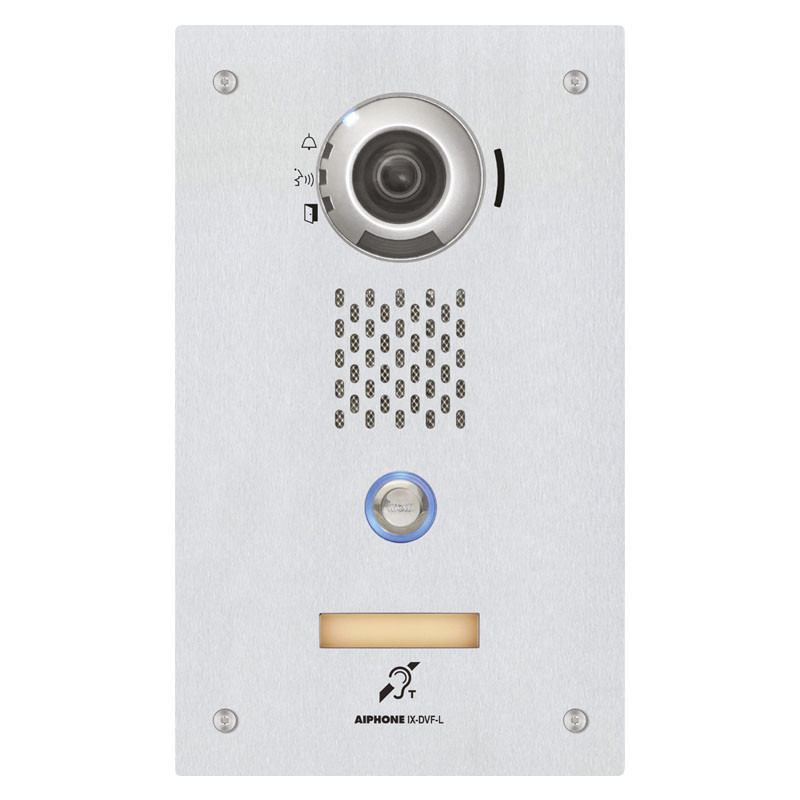

IP Video Door Station with T-Coil Compatibility. The IX-DVF-L is flush mount, weather resistant, IP video door station, with a built-in circuit that supports T-coil compatible hearing aids. It connects to a network using Cat-5e/6 cable and is SIP compliant. Equipped with a 1.23 megapixel fixed color camera. The video can be streamed to third-party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card.
Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message). The stations have audible and visual indications for calling, communication, and door release.
Features
• SIP 2.0 compliant
• 1.23 megapixel fixed color video camera
• White LED for low light illumination
• ONVIF Profile S compliant
• Camera vertical adjustment +15º, 0º, or -8º (manual)
• Slot for microSD™ card (not provided by Aiphone)
• Weather and vandal resistant
• 2 contact outputs/6 trigger inputs
• T-coil hearing aid support
• Stainless steel
• 802.3af PoE compliant
• RJ45 in/out with PoE pass-through (802.3at Type 2 PoE+)
Specifications
• Power Source: PoE (IEE 802.3af class 0) and 24V DC (PS-2420UL)
• Power Draw: 5.28W
• Camera: ⅓" CMOS 1.23 megapixel
• Min. illumination: 5 lux
• Audio Codec: G.711 (μ-law, A law), G.722
• Video Codec: H.264/AVC, motion JPEG
• Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS
• Port Security: IEEE 802.1X
• Operating Temp: -40° ~ 140°F (-40° ~ 60°C)
• Protection: IP65, IK08
• Dimensions: 11-11⁄16" H x 7" W x 2-1⁄16" D
IP Video Door Station with T-Coil Compatibility. The IX-DVF-L is flush mount, weather resistant, IP video door station, with a built-in circuit that supports T-coil compatible hearing aids. It connects to a network using Cat-5e/6 cable and is SIP compliant. Equipped with a 1.23 megapixel fixed color camera. The video can be streamed to third-party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card.
Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message). The stations have audible and visual indications for calling, communication, and door release.
Features
• SIP 2.0 compliant
• 1.23 megapixel fixed color video camera
• White LED for low light illumination
• ONVIF Profile S compliant
• Camera vertical adjustment +15º, 0º, or -8º (manual)
• Slot for microSD™ card (not provided by Aiphone)
• Weather and vandal resistant
• 2 contact outputs/6 trigger inputs
• T-coil hearing aid support
• Stainless steel
• 802.3af PoE compliant
• RJ45 in/out with PoE pass-through (802.3at Type 2 PoE+)
Specifications
• Power Source: PoE (IEE 802.3af class 0) and 24V DC (PS-2420UL)
• Power Draw: 5.28W
• Camera: ⅓" CMOS 1.23 megapixel
• Min. illumination: 5 lux
• Audio Codec: G.711 (μ-law, A law), G.722
• Video Codec: H.264/AVC, motion JPEG
• Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS
• Port Security: IEEE 802.1X
• Operating Temp: -40° ~ 140°F (-40° ~ 60°C)
• Protection: IP65, IK08
• Dimensions: 11-11⁄16" H x 7" W x 2-1⁄16" D
