JVS-1V

JVS-1V

AIPHONE 7 inch color video / flush mount door station kit (w/PS)

Logga in för priser
AP-JVS1V

AIPHONE 7 inch color video / flush mount door station kit (w/PS)

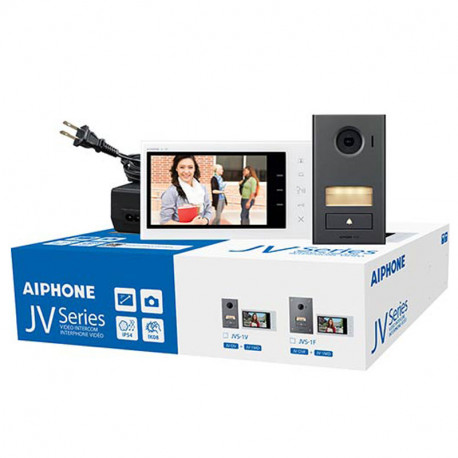

The JVS-1V box set includes the JV-DV, JV-1MD (not sold separately), and PS-2420UL power supply.

The JVS-1V is a convenient box set that comes complete with master station, door station, and power supply. Add the optional JV-1FD, a video expansion station, to create a 1x2 system.

Features

JV-DV
• Fixed camera provides clear video
• Weather and vandal resistant
• LED illumination automatically turns on in low light conditions
• Backlit call button and nameplate

JV-1MD Video Master Station
• Video identification and monitoring
• Slim design
• Hands-free communication or push-to-talk


Specifications
• Power Source: 24V DV—use PS-2420UL
• Door Release: Master/Expansion Station and Door Station Output: N/O dry contact, 24V AC/DC, 1A, Second Door Station Output: N/O wet contact, 500 mA or less, 12 V DC
• Communication: Hands-free (VOX) or push-to-talk (simplex)
• Wire Type: Door Station to Master Station: 2-cond., mid cap, solid, non-shielded—use Aiphone #871802, Door Station to Expansion Station: 2-cond., mid cap, solid, non-shielded—use Aiphone #871802, Expansion Station to Master Station: 4-cond., mid cap, solid, non-shielded—use Aiphone #87102, Expansion Station to Master Station (with door release): 6-cond., mid cap, solid, non-shielded—use Aiphone #971804 + #87102
• Distance: Door Station to Master Station: 165' (22AWG) 330' (18 AWG), Door Station to Expansion Station: 165' (22AWG) 330' (18 AWG) Expansion Station to Master Station: 165' (22AWG) 330' (18 AWG), Power Supply to Master Station: 16' (22AWG) 33' (18 AWG)
