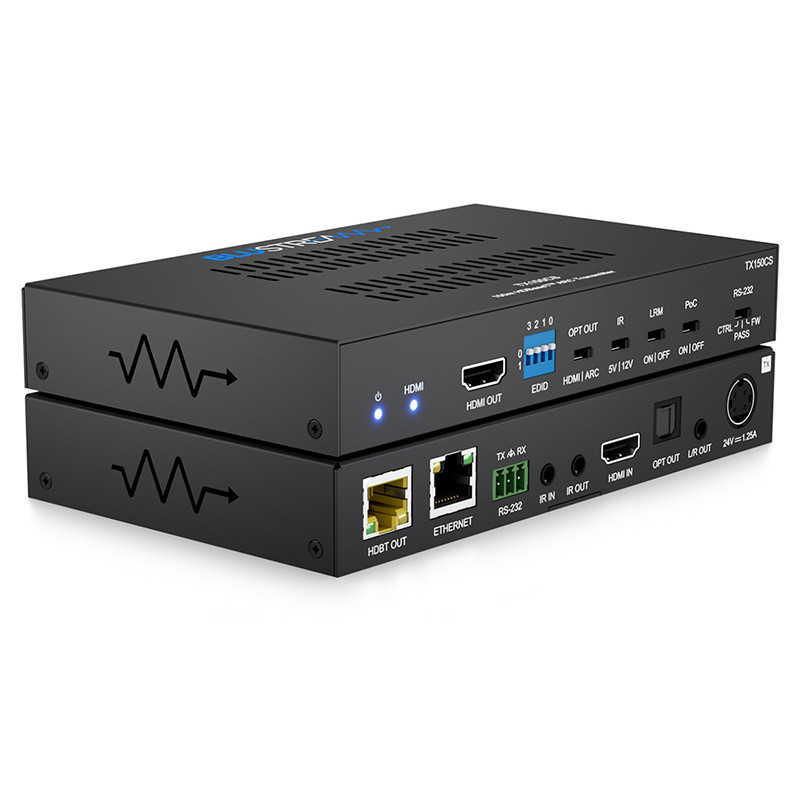

TX150CS
BLUSTREAM HDBaseT CSC Transmitter, HDMI 2.0 4K 60Hz 4:4:4 & up to 100m, excl. power supply
BLUSTREAM HDBaseT CSC Transmitter, HDMI 2.0 4K 60Hz 4:4:4 & up to 100m, excl. power supply
TX150CS
150m HDBaseT™ ARC Transmitter
Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The TX150CS is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ transmitter utilising CSC technology.
The TX150CS supports HDMI, Bi-directional IR and PoC up to lengths of 150m over a single CAT cable.
The TX150CS also provides enhanced features including ARC via HDMI or optical (S/PDIF), RS-232 pass through and Ethernet pass through.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
• Supports ARC (Audio Return Channel) from connected display via HDMI or optical (S/PDIF) digital inputs
(when used with compatible Blustream RX150CS Receiver or PLA88CS Platinum matrix)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Bi-directional 100Mbps Ethernet pass through when used with Blustream RX150CS Receiver or PLA88CS Platinum matrix solution
• Bi-directional RS-232 pass through
• Bi-directional IR from all input and output locations
• Supports bi-directional PoC (Power over Cable) to power extender from either Matrix, transmitter or receiver end
• HDCP 2.2 support
Specifications
• Video Input Connectors: 1x HDMI Type A, female
• Video Output Connectors: 1x HDBaseT™ RJ45, 1x HDMI Type A, female (loop)
• Audio Output Connectors: 1x Optical Toslink (S/PDIF), 1x 3.5mm L/R analogue audio
• RS-232 Port: 1x 3-pin Phoenix connector
• Ethernet Port: 1x RJ45 connector
• IR Input Port: 1x 3.5mm stereo jack
• IR Output Port: 1x 3.5mm mono jack
• Mounting Kit: Included
• Power Supply: 24V/1.25A DC, 4-pin DIN connector (not included)
• Casing Dimensions (W x D x H): 164mm x 100mm x 25mm
• Shipping Weight: 0.6kg
• Operating Temperature: 32°F to 104°F (0°C to +40°C)
• Storage Temperature: -4°F to 140°F (-20°C to +60°C)
Box Contents
1 x TX150CS Receiver
1 x Mounting Bracket Set
1 x Quick Reference Guide
TX150CS
150m HDBaseT™ ARC Transmitter
Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The TX150CS is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ transmitter utilising CSC technology.
The TX150CS supports HDMI, Bi-directional IR and PoC up to lengths of 150m over a single CAT cable.
The TX150CS also provides enhanced features including ARC via HDMI or optical (S/PDIF), RS-232 pass through and Ethernet pass through.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
• Supports ARC (Audio Return Channel) from connected display via HDMI or optical (S/PDIF) digital inputs
(when used with compatible Blustream RX150CS Receiver or PLA88CS Platinum matrix)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Bi-directional 100Mbps Ethernet pass through when used with Blustream RX150CS Receiver or PLA88CS Platinum matrix solution
• Bi-directional RS-232 pass through
• Bi-directional IR from all input and output locations
• Supports bi-directional PoC (Power over Cable) to power extender from either Matrix, transmitter or receiver end
• HDCP 2.2 support
Specifications
• Video Input Connectors: 1x HDMI Type A, female
• Video Output Connectors: 1x HDBaseT™ RJ45, 1x HDMI Type A, female (loop)
• Audio Output Connectors: 1x Optical Toslink (S/PDIF), 1x 3.5mm L/R analogue audio
• RS-232 Port: 1x 3-pin Phoenix connector
• Ethernet Port: 1x RJ45 connector
• IR Input Port: 1x 3.5mm stereo jack
• IR Output Port: 1x 3.5mm mono jack
• Mounting Kit: Included
• Power Supply: 24V/1.25A DC, 4-pin DIN connector (not included)
• Casing Dimensions (W x D x H): 164mm x 100mm x 25mm
• Shipping Weight: 0.6kg
• Operating Temperature: 32°F to 104°F (0°C to +40°C)
• Storage Temperature: -4°F to 140°F (-20°C to +60°C)
Box Contents
1 x TX150CS Receiver
1 x Mounting Bracket Set
1 x Quick Reference Guide
