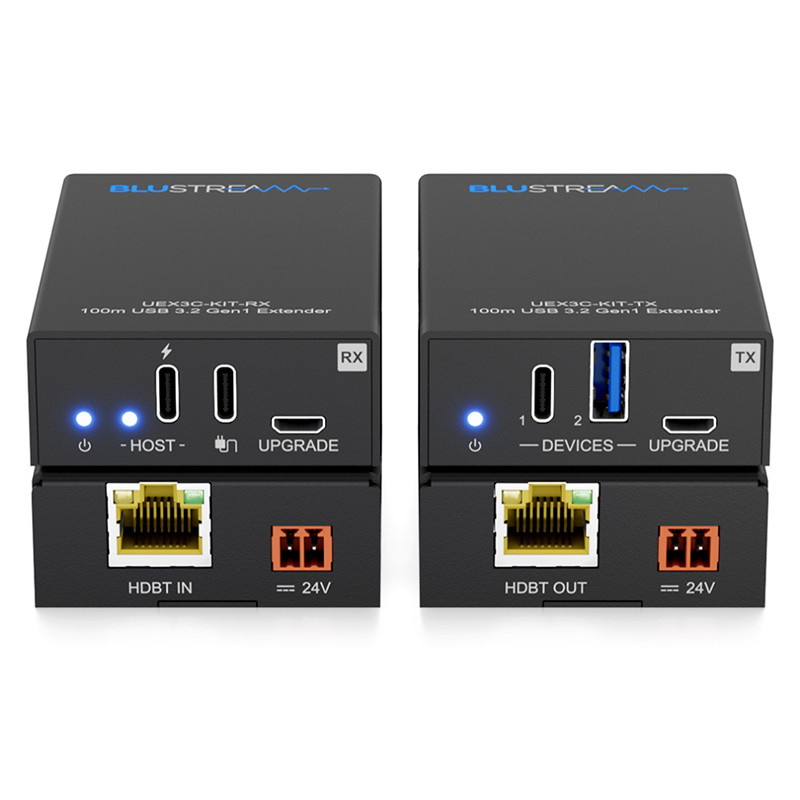

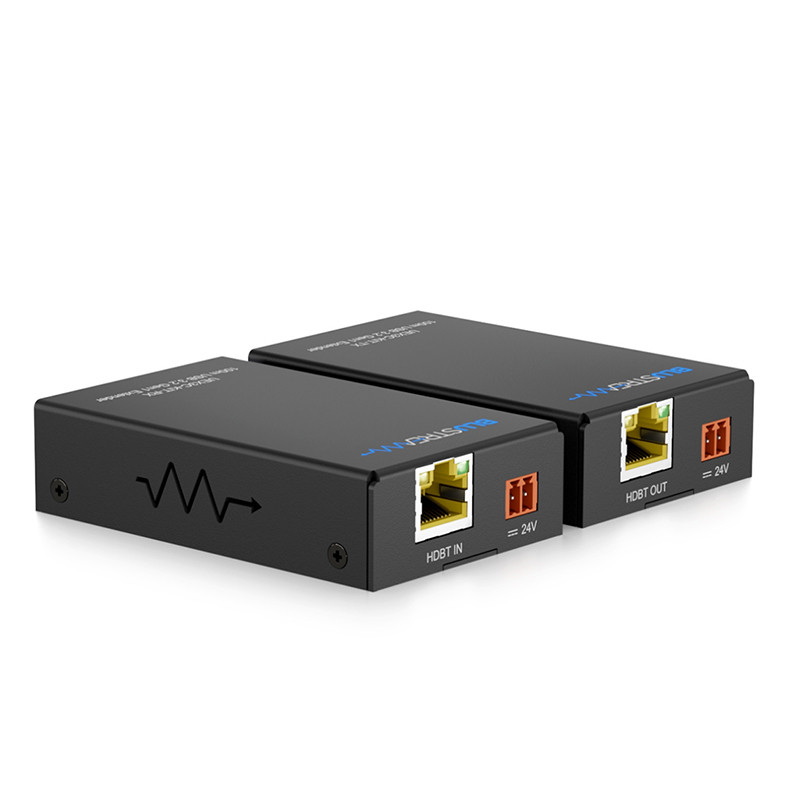

UEX3C-KIT

BLUSTREAM USB-C / USB 3.2 5Gbps HDBaseT Extender set - 100m, USB-C - USB-C



The UEX3C-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 3.2 Gen1 signals up to 100m over a single CAT cable. The UEX3C-KIT allows up to 2 USB devices to be connected to a single USB host with support for a transmission data bandwidth up to 5Gbps. The UEX3C-KIT is backwards compatible with USB 2.0 and 1.1 devices and provides bi-directional Power over Cable (PoC).



The UEX3C-KIT is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, Flash/hard drives, KVM devices, audio devices and other USB 3.2 Gen1 devices

Key Features

• Supports USB 3.2 signal extension up to 100m*
• Backwards compatible with USB 2.0 & 1.1 devices

• USB3.2 Gen1 data transfer rate up to 5Gbps*
• 1x USB-C port on the receiver for connection to host device

• 1x USB-C host charging port for connection of external power supply to power host device
• 1x USB-A & 1x USB-C port on transmitter for connection to devices

• Provides up to 2.5A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands

• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit
• PoC function can be enabled/disabled via dipswitch

• Simple plug and play, no driver installation or setup required.



Specifications


UEX3C-H
• USB Host Connectors: 1x USB-C, female

• USB Charge Connectors: 1x USB-C, female
• CAT Connectors: 1x HDBaseT™ RJ45 connector

• IR Output Port: 1x 3.5mm stereo jack
• Upgrade Port: 1x Micro USB connector

• Casing Dimensions (W x D x H): 130mm x 61mm x 22mm
• Power Supply: 24V/1.25A DC, 2-pin Phoenix connector


UEX3C-D
• USB Host Connectors: 1x USB-C, female, 1x USB-A, female

• USB Charge Connectors: 1x USB-C, female
• CAT Connectors: 1x HDBaseT™ RJ45 connector

• Upgrade Port: 1x Micro USB connector
• Casing Dimensions (W x D x H): 130mm x 61mm x 22mm

• Power Supply: 24V/1.25A DC, 2-pin Phoenix connector


UEX3C-KIT
• Box Dimensions (W x D x H): 215mm x 150mm x 63mm

• Shipping Weight: 1.0kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)



*Please note: This USB HDBaseT Extender product is not compatible with ‘DP Alt Mode’ signals.*



Box Contents
• 1 x UEX3C-H
• 1 x UEX3C-D
• 2 x Mounting kits
• 1 x 24V/1.5A power supply
• 1 x Quick Reference Guide
