HEX11WPW-RX
BLUSTREAM HDMI Wallplate HDBaseT Receiver - HDMI, RS-232 and IR up to 70m (4K 60Hz 4:2:0 up to 40m)
BLUSTREAM HDMI Wallplate HDBaseT Receiver - HDMI, RS-232 and IR up to 70m (4K 60Hz 4:2:0 up to 40m)

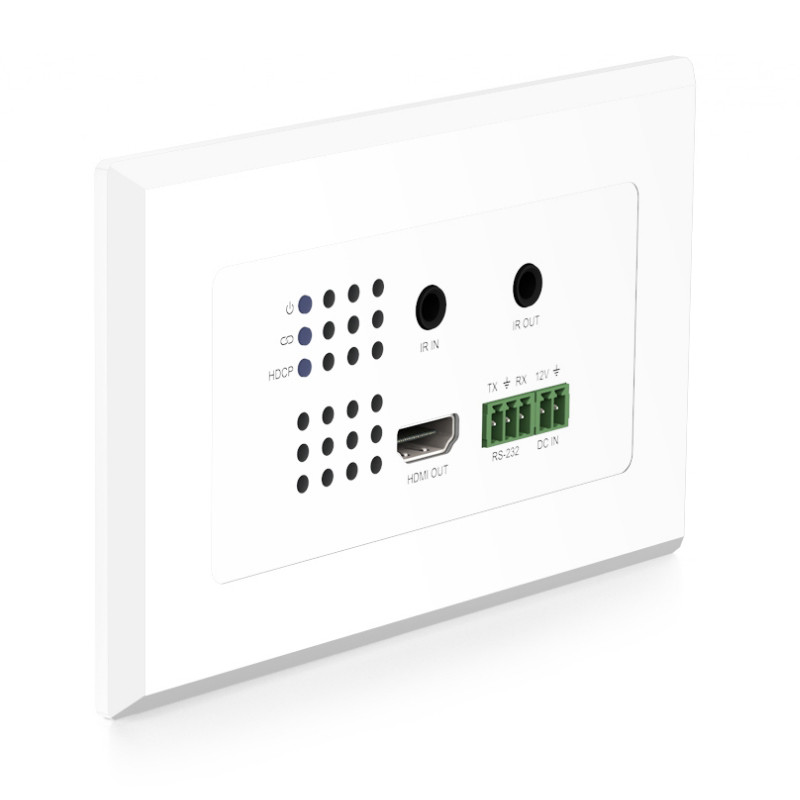

HDMI Wall Plate HDBaseT™ Receiver.
Our HEX11WPW-RX HDMI Wall Plate HDBaseT™ receiver is a 4K solution designed to receive HDMI signals up to 70m at 1080p (40m at 4K 60Hz 4:2:0).
The HEX11WPW-RX has been designed to work with all Blustream HDBaseT™ transmitter and matrix solutions, be installed in both UK and European backboxes, and can be powered locally or from compatible Blustream HDBaseT™ products.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports CEC and RS-232 pass through
• Supports bi-directional IR pass-through to compatible HDBaseT™ device
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products
• Compatible with all Blustream HDBaseT™ transmitter / matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support
Specifications
• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• RS-232 Serial Port: 1 x 3-pin phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Local Power Input: 1 x 2-pin phoenix connector
• Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
• Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
• Backbox Mounting Depth: 40mm (minimum) - backbox not supplied
• Shipping Weight: 0.7kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 12V/1A DC
Box Contents
• 1 x HEX11WPW-RX
• 1 x 12V/1A DC Power Supply
• 1 x Magnetic Faceplate
• 1 x Quick Reference Guide
HDMI Wall Plate HDBaseT™ Receiver.
Our HEX11WPW-RX HDMI Wall Plate HDBaseT™ receiver is a 4K solution designed to receive HDMI signals up to 70m at 1080p (40m at 4K 60Hz 4:2:0).
The HEX11WPW-RX has been designed to work with all Blustream HDBaseT™ transmitter and matrix solutions, be installed in both UK and European backboxes, and can be powered locally or from compatible Blustream HDBaseT™ products.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports CEC and RS-232 pass through
• Supports bi-directional IR pass-through to compatible HDBaseT™ device
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products
• Compatible with all Blustream HDBaseT™ transmitter / matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support
Specifications
• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• RS-232 Serial Port: 1 x 3-pin phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Local Power Input: 1 x 2-pin phoenix connector
• Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
• Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
• Backbox Mounting Depth: 40mm (minimum) - backbox not supplied
• Shipping Weight: 0.7kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 12V/1A DC
Box Contents
• 1 x HEX11WPW-RX
• 1 x 12V/1A DC Power Supply
• 1 x Magnetic Faceplate
• 1 x Quick Reference Guide
