BLUSTREAM HDMI Wallplate Transmitter via HDBaseT - 1080p to 70m, inkl. back box

Logga in för priser
BS-HEX11WPTX

BLUSTREAM HDMI Wallplate Transmitter via HDBaseT - 1080p to 70m, inkl. back box

HDMI Wall Plate HDBaseT™ Transmitter - HDMI, RS-232 and IR up to 70m (4K up to 40m)

Description
Our HEX11WPB-TX HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0).

The HEX11WPB-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, can be installed in both UK and European back boxes, and can be powered locally or from compatible Blustream HDBaseT™ products.

Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products *
• Bi-directional RS-232 pass-through
• Supports IR pass-through to HDBaseT™ receiver / matrix device
• Compatible with all Blustream HDBaseT™ receiver / matrix products **
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support

* When powering the HEX11WPB-TX locally, PoC is not passed to a connected HDBaseT™ receiver device
** Technical performance is subject to the features supported on the connected HDBaseT™ device

Specifications

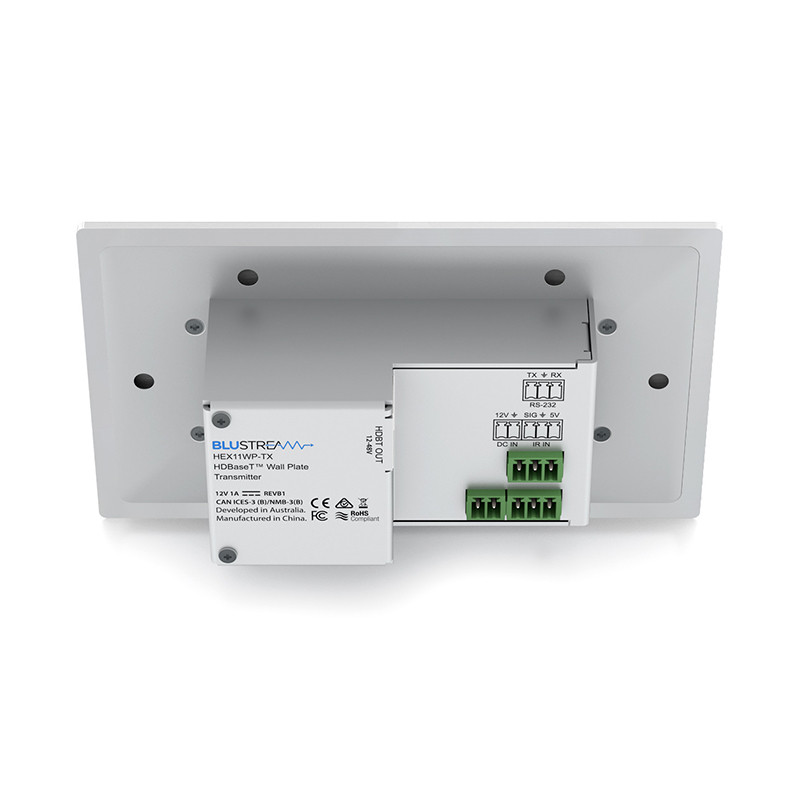

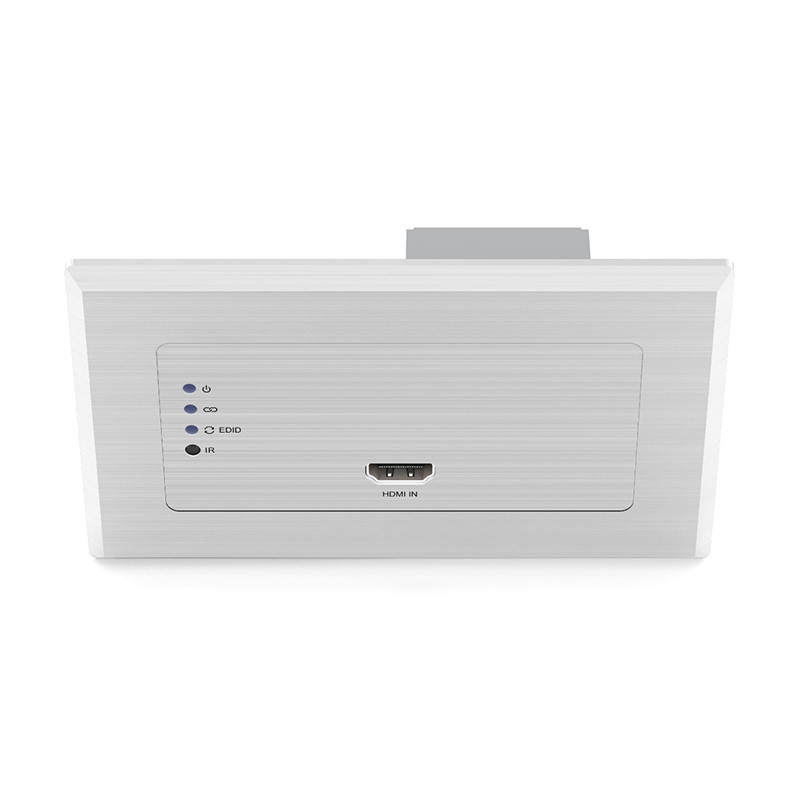

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• IR Input Port: 1 x 3-Pin Phoenix connector
• Local Power Input: 1 x 2-Pin Phoenix connector
• Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
• Casing Dimensions (W x H x D): 146mm x 86mm x 44mm (with faceplate)
• Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
• Backbox House Unit Dimensions (W x H x D): 78mm x 49mm x 39mm (part of unit housed inside backbox)
• UK / EU Backbox Mounting Depth: 40mm (minimum) - 47mm backbox included
• Shipping Weight: 2.1kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 12V/1A DC

Box Contents
1 x HEX11WPB-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate surround

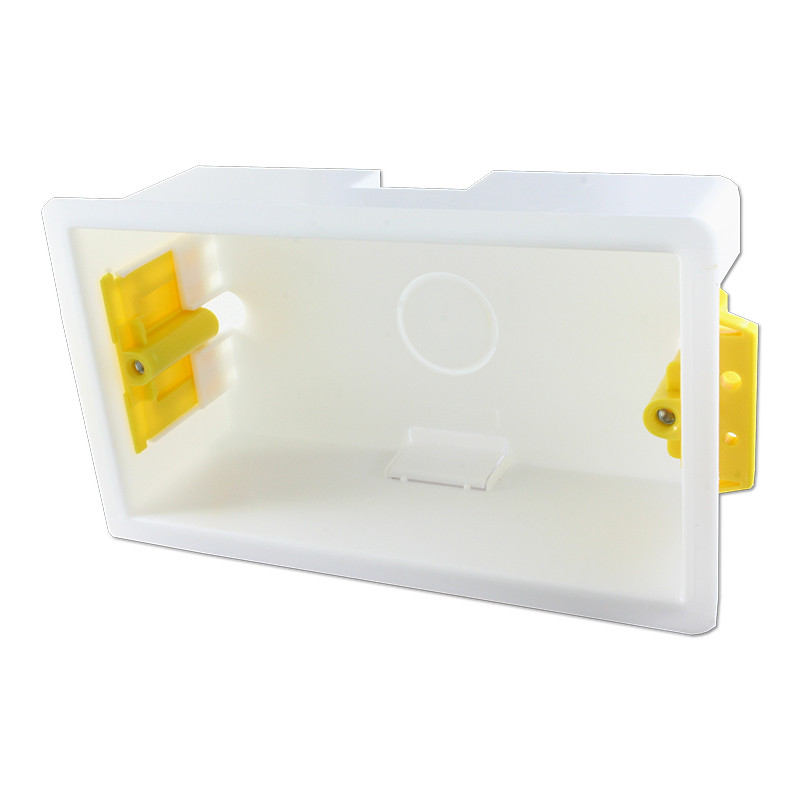

1 x 2-Gang Back box (D: 47mm)
1 x Quick Reference Guide
