MX44KVM

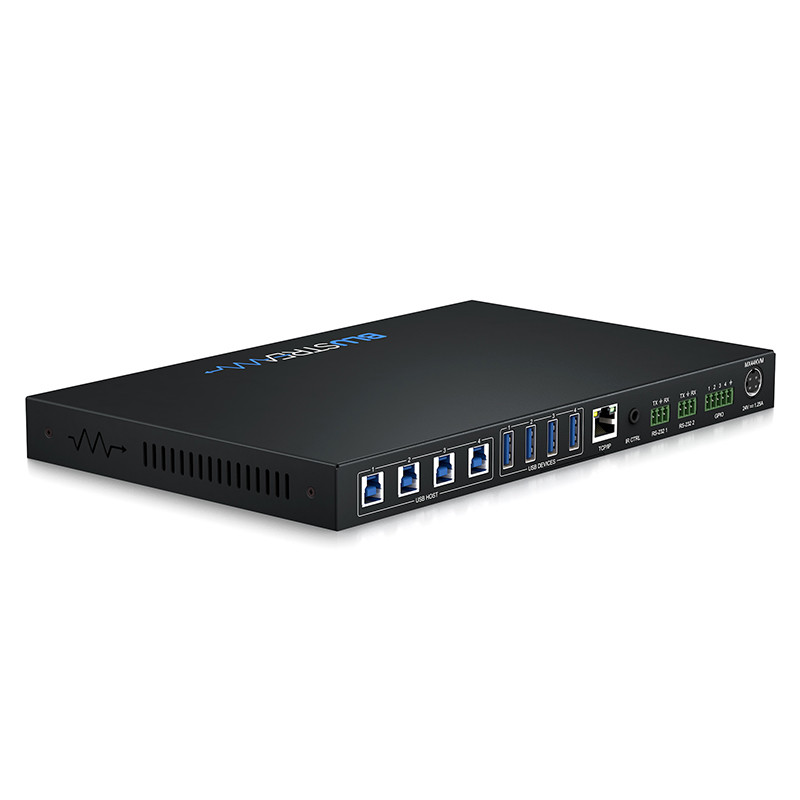

BLUSTREAM 4x4 USB KVM Matrix

4x4 USB KVM Matrix supporting USB 3.0 data transfer rates up to 5Gbps, 4x configurable GPIO, Front Panel, IR, TCP / IP and RS-232 control with loop-through, web-GUI

Description
Our 4x4 USB 3.0 KVM Matrix offers unprecedented performance and value for the custom and commercial installation market.

The MX44KVM is a USB 3.0 Matrix package allowing 4x USB peripheral devices to be shared between 4x host devices, supporting plug-and-play capabilities, and USB data transfer rates up to 5Gbps.

The Matrix provides advanced features including cascading of multiple MX44KVM units, GPIO functionality for 3rd party product triggers, an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.

An RS-232 loop-through connection allows for the MX44KVM to be intrinsically linked to any Blustream video matrix product for the addition of KVM support to our video-only switching products.

Key Features
• 4x4 USB KVM Matrix allowing up to 4 x USB peripheral devices to be shared between 4 x host devices
• USB 3.0 connectivity with data transfer rates up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Plug-and-play with no drivers, downloads, or software required
• USB-A connections provide 5V / 900mA
• Features 4 x configurable GPIO ports for integration with 3rd party products
• Features RS-232 loop-through for repetition of incoming RS-232 commands to additional Blustream products
• Assignable inputs and outputs allowing automated switching when used with existing Blustream Matrix products
• Web interface module for control and configuration of the MX44KVM
• Control via front panel, IR, RS-232, and TCP/IP

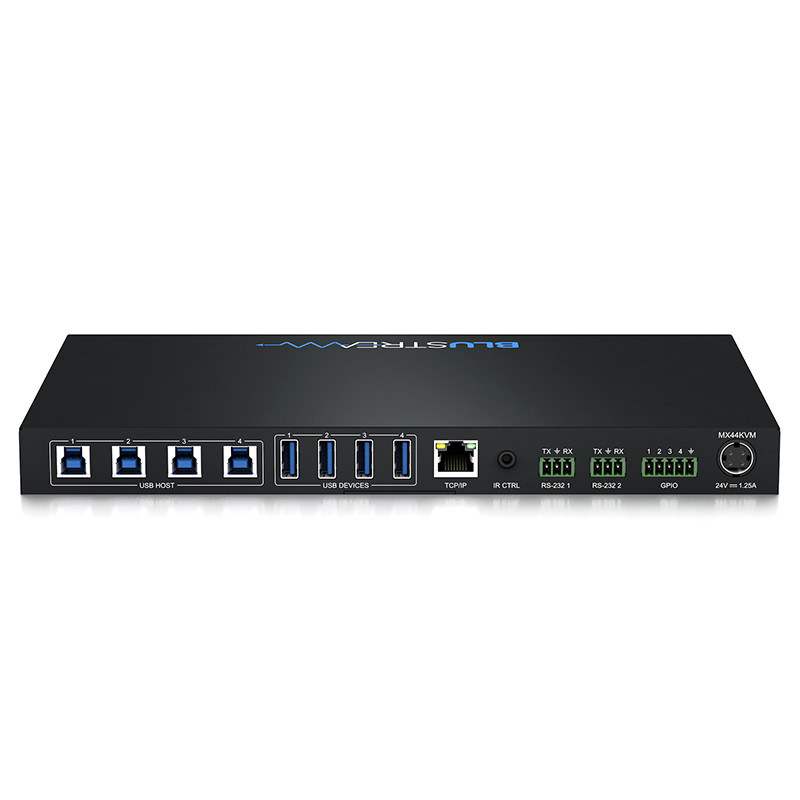

Specifications
• USB Device: 4 x USB Type A, female
• USB Host: 4 x USB Type B, female
• RS-232 serial port: 2 x 3-pin Phoenix connector
• IR Input port: 1 x 3.5mm stereo jack
• TCP/IP Control: 1 x RJ45, female
• GPIO Control: 1 x 5-pin Phoenix connector
• Dimensions (W x D x H): 273mm x 168mm x 25mm
• Shipping Weight: 2.65kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 24V/1.25A DC, 4-pin DIN connector

Box Contents
1 x MX44KVM
1 x Mounting kit
1 x USB-A to USB-B cable (1m)
1 x IRR receiver
1 x IRCAB control cable (3.5mm - 3.5mm cable)
2 x 3-pin Phoenix connector
1 x 5-pin Phoenix connector
4 x Isolation feet
1 x 24V/1.25A DC power supply
1 x Quick Reference Guide
