Soundtube 5.25in Infälld takhögtalare, IP/Dante, 40W PoE, vit

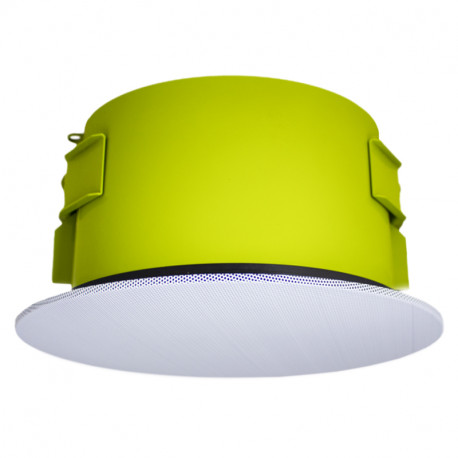

SoundTube IPD-CM52-BGM-II IP-Addressable Speaker in White.
Dante®-enabled coaxial in-ceiling speaker incorporating one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 65 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4mm). Color-coded tile bridge, UL listed conduit clamp and paint shield are included.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Features
• IP-addressable, self-powered (PoE) speaker.
• Dante™ and AES67 interconnectivity with Dante and AES67 enabled audio systems.
• One 5.25” (134 mm) polypropylene woofer with rubber surround and one 0.75” (19 mm) silk dome tweeter.
• BroadBeam Ring™ technology for mid-range clarity and ultra wide off-axis performance.
• Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
• 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE
switches.
• Provides report-back on any problems via SoundTube software.
• Tuned port on baffle for added musicality and bass response down to 56 Hz (±10 dB).
• Incorporates a painted steel grille for lasting durability.
• SpeedWing™ clamping system is adaptable to material thicknesses ranging from 0.035” (0.9
mm) to 2.5” (63.5 mm)
• UL 60065 and 2043 listed.
• High-quality white painted finish. Custom colors available.
• Included accessories: color-coded (green) tile bridge, UL listed conduit clamp, paint shield.
• Optional accessories: color-coded (green) pre-construction bracket (AC-CMEZ6/8-PCB).
SoundTube IPD-CM52-BGM-II IP-Addressable Speaker in White.
Dante®-enabled coaxial in-ceiling speaker incorporating one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 65 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4mm). Color-coded tile bridge, UL listed conduit clamp and paint shield are included.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Features
• IP-addressable, self-powered (PoE) speaker.
• Dante™ and AES67 interconnectivity with Dante and AES67 enabled audio systems.
• One 5.25” (134 mm) polypropylene woofer with rubber surround and one 0.75” (19 mm) silk dome tweeter.
• BroadBeam Ring™ technology for mid-range clarity and ultra wide off-axis performance.
• Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
• 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE
switches.
• Provides report-back on any problems via SoundTube software.
• Tuned port on baffle for added musicality and bass response down to 56 Hz (±10 dB).
• Incorporates a painted steel grille for lasting durability.
• SpeedWing™ clamping system is adaptable to material thicknesses ranging from 0.035” (0.9
mm) to 2.5” (63.5 mm)
• UL 60065 and 2043 listed.
• High-quality white painted finish. Custom colors available.
• Included accessories: color-coded (green) tile bridge, UL listed conduit clamp, paint shield.
• Optional accessories: color-coded (green) pre-construction bracket (AC-CMEZ6/8-PCB).
