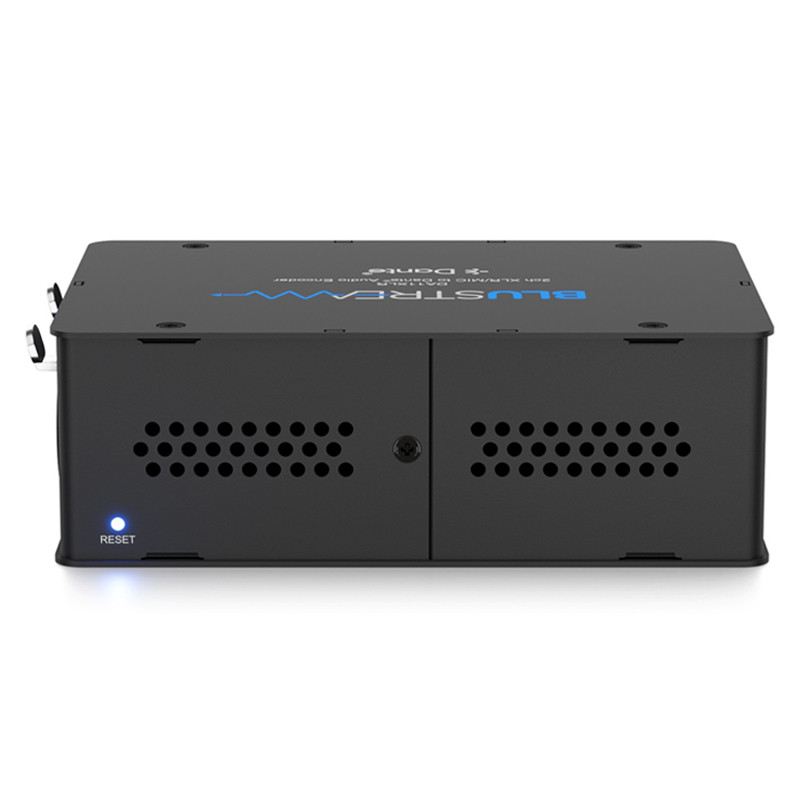

DA11XLR

BLUSTREAM Dual XLR MIC to Dante Encoder




Analogue XLR Audio to Dante® Encoder.


The DA11XLR is a multi-input XLR to Dante® networked audio system. The DA11XLR converts 2 input channels of balanced / unbalanced / MIC audio with switchable 48V Phantom power to Dante® digital audio.



The DA11XLR is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport.



Key Features


• Dante® network interface for 2 x XLR audio inputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels

• Switchable 48V Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input

• Supports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)

• Supports AES67 RTP audio transport
• Features Class 0 802.3af PoE for powering of product from any PoE switch

• Local 12V power supply input for when network switch does not support PoE*



Specifications
• Casing Dimensions (L x W x H): 120mm x 84mm x 40mm

• Shipping Weight: 0.3 Kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
• Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC 2-Pin Phoenix connector

• Audio Input Connectors: 2 x Analogue Balanced / Unbalanced 3-Pin XLR connector
• Audio Output Connector: 1 x RJ45, female (100 Mbps Dante® network)



Box Contents
• 1 x DA11XLR

• 1 x Quick Reference Guide
