DAC13DB

BLUSTREAM Dolby / DTS Digital Audio Converter with Down Mixing

Digital Audio Converter with Dolby Audio and DTS Audio Down-mixing

Description
The Blustream DAC13DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an optical or coaxial audio signal into a stereo 2ch signal available on optical, coaxial and analogue audio outputs.

Key Features
• Downmixes 5.1ch Dolby Audio and DTS Audio from optical Toslink or coaxial digital audio input signals from a compatible source device to 2ch stereo audio
• Simultaneously outputs downmixed 2ch audio via analogue, optical Toslink or coaxial digital audio outputs
• Dolby Audio and DTS Audio formats supported:
- PCM 2ch
- Dolby Digital 2ch
- Dolby Digital 5.1ch
- DTS 2ch
- DTS 5.1ch
• Supports audio signals up to 24-bit with sampling rates up to 96kHz

Specifications
• Audio Input Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital

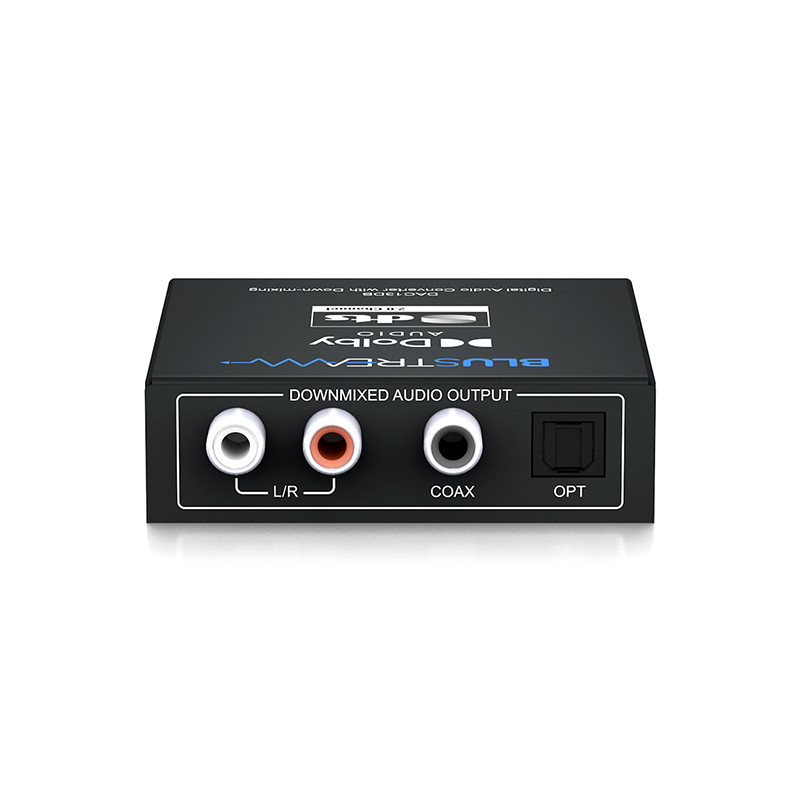

• Audio Output Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, 2 x RCA Stereo Analogue (L/R)
• Casing Dimensions (W x D x H): 80mm x 76mm x 24mm (without connections)
• Dimensions (W x D x H): 80mm x 91mm x 24mm
• Shipping Weight: 0.2kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 5V/1A DC

Note: Specifications are subject to change without notice. Weights and dimensions are approximate.

Box Contents
1 x DAC13DB
1 x Mounting Kit
1 x 5V/1A DC Power Supply
1 x Quick Reference Guide
