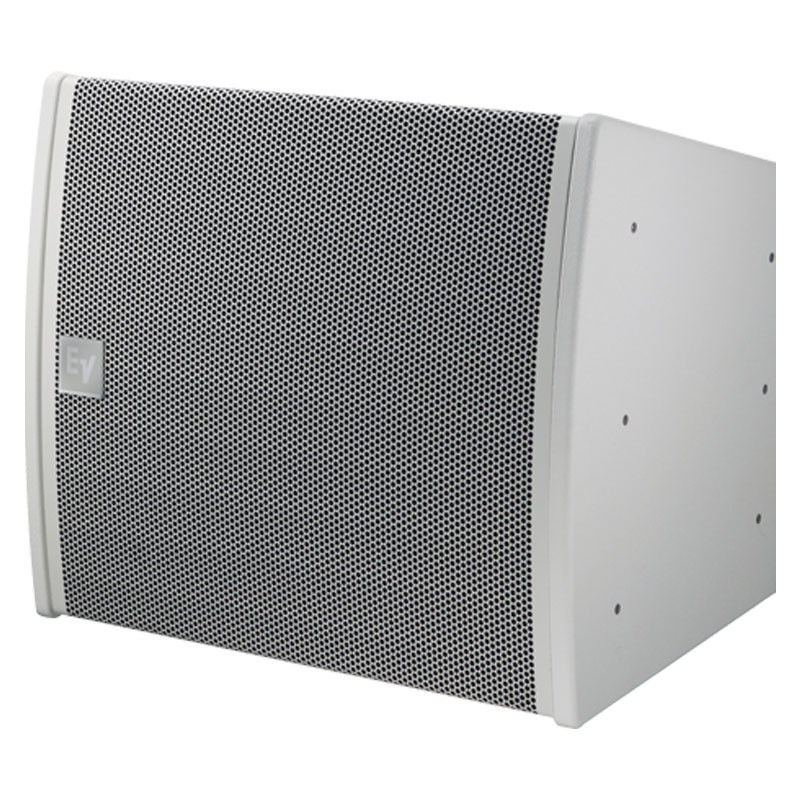

EVA-2082/920-WHT

EV Vertical Array 2x8in, 4xDH2005, 90x6, 350W, White

The Electro-Voice EVA Series (Expandable Vertical Array) is designed to provide full bandwidth, well defined coverage from easily created line arrays using four different preconfigured 2-way modules. Two vertical coverage angles, 6° and 20°, can be combined to create line arrays optimized for spaces ranging from 12m (40ft) to greater than 60m (200ft) deep. Two horizontal coverage angles, 90° and 120°, provide the perfect match for any width. Each module consists of two elements, each 2-way element containing an 8” woofer and two compression drivers mounted on a hydra/waveguide combination. High order passive networks couple the element’s transducers, and the array element to additional elements to provide plane wave radiation and response equal to DSP-driven high end systems. Impedance management allows full array drive (up to 4 modules) from a single amplifier channel at 4 ohms. Matching subwoofer module is available when response below 50 Hz is required. EVA systems can be used in a variety of fixed installation applications where high quality sound reinforcement and even coverage are required from a compact , lightweight, unobtrusive array.



Key Features
• High performance, cost-effective

• Ideal for fixed-installation line arrays
• Two array elements in each module

• Two 8-inch low-distortion woofers
• Four 1.25-inch titanium diaphragm HF drivers

• Advanced Hydra(R) plane wave generators
• High sensitivity (104 dB) for high output

• Super efficient: drive up to 8 boxes from a single amp channel
• Sixth-order passive crossover with HF protection

• Integrated hidden suspension hardware
• Choice of three finishes: indoor, PI and fiberglass

• Use PREVIEW Loudspeaker Software to simulate and validate designs



Specifications
• Frequency Range (-10 dB): 45 - 20000kHz

• Suspension: EVA Grid (Sold Separately)
• Minimum Impedance: 12Ω

• Nominal Impedance (Passive): 16Ω
• HF Transducer: (4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver

• Speaker Type: Full-Range, Line-array
• Frequency Response (-3 dB)¹: 60 - 19000Hz

• Max. SPL/1m (calc)²: 135dB
• Coverage (Nominal -6 dB) H: 90°

• LF Transducer: (2) EVS2008, 8 In (203mm) Driver
• Coverage (Nominal -6 dB) V: 20°

• System Power Handling (Continuous/Program/Peak): 350, 700, 1400 Watts
• Crossover Frequency: 1740Hz

• Enclosure Material: Birch plywood
• Grille: 16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth

• Sensitivity 1 W/1 m: 104dB (3 module array)
• Height: 20.17" (512.2mm)

• Width: 23.5" (596.9mm)
• Recommended High-Pass Frequency: 50Hz

• Depth: 14.53" (369.1mm)
• Weight Net: 81.13lbs (36.8kg)

• Passive Power Handling: 1400W peak
• Input Connections: Phoenix/Euroblock style screw terminals
