RDL Dante <-> obalanserad phono / 3,5mm stereo in/ut PoE

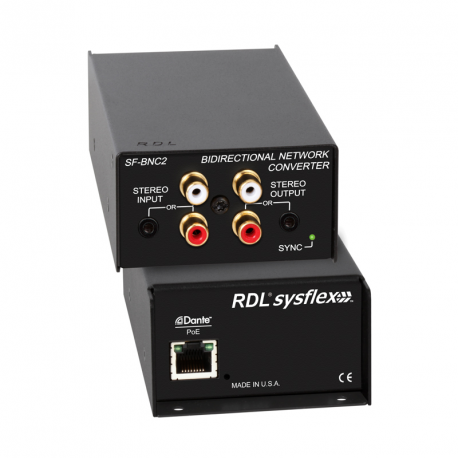

SF-BNC2 Bidirectional Unbalanced Stereo Audio Network Interface
The SF-BNC2 is a bidirectional Dante audio network interface. It features two unbalanced audio inputs (left and right) on RCA or stereo 3.5 mm Mini-jack connectors, as well as two unbalanced audio outputs (left and right) on RCA and stereo 3.5 mm Mini-jack connectors. Special software is not required to configure the SF-BNC2. Each input provides a network digital audio level of -20 dBFS for an unbalanced -10 dBV input. Each output provides -10 dBV unbalanced for a network digital audio level of -20 dBFS. The SF-BNC2 is a professional grade product for studio quality fidelity and low noise performance.
The SF-BNC2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.
The SF-BNC2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems.
Features:
• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• Inputs and Outputs on Front-Panel RCA Jacks and Stereo 3.5 mm Mini-Jacks
• Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Converts Two Unbalanced Line-Level Audio Sources to Dante Network Channels
• Converts Two Dante Network Audio Signals to Unbalanced Line Level
• Special Software Not Required for Module Setup
• Exceptional Low-Noise and Low-Distortion Performance
• High Resolution 24 Bit Digital to Analogue Conversion
• Legendary RDL Analogue Filtering Enhances Superb Audio Performance
• LED Indicator for Valid Power and Network Sync
• Operation from PoE Power (Class 0, IEEE 802.3af)
• Equipped for SysFlex™ Rack Mounting or Surface Mounting

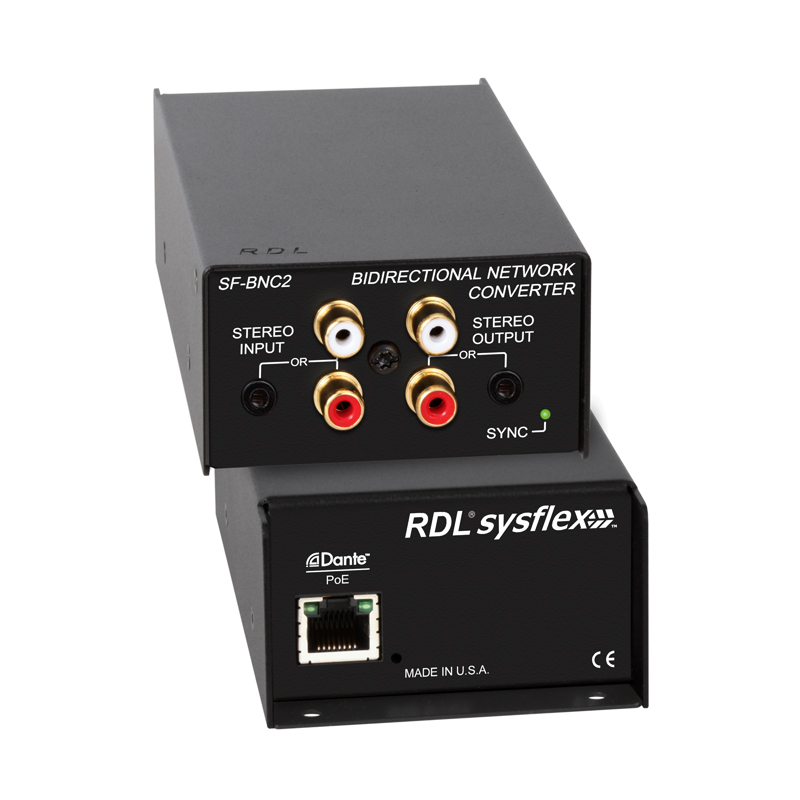

SF-BNC2 Bidirectional Unbalanced Stereo Audio Network Interface
The SF-BNC2 is a bidirectional Dante audio network interface. It features two unbalanced audio inputs (left and right) on RCA or stereo 3.5 mm Mini-jack connectors, as well as two unbalanced audio outputs (left and right) on RCA and stereo 3.5 mm Mini-jack connectors. Special software is not required to configure the SF-BNC2. Each input provides a network digital audio level of -20 dBFS for an unbalanced -10 dBV input. Each output provides -10 dBV unbalanced for a network digital audio level of -20 dBFS. The SF-BNC2 is a professional grade product for studio quality fidelity and low noise performance.
The SF-BNC2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.
The SF-BNC2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems.
Features:
• Dante Network Interface for Two Audio Inputs and Two Audio Outputs
• Inputs and Outputs on Front-Panel RCA Jacks and Stereo 3.5 mm Mini-Jacks
• Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Converts Two Unbalanced Line-Level Audio Sources to Dante Network Channels
• Converts Two Dante Network Audio Signals to Unbalanced Line Level
• Special Software Not Required for Module Setup
• Exceptional Low-Noise and Low-Distortion Performance
• High Resolution 24 Bit Digital to Analogue Conversion
• Legendary RDL Analogue Filtering Enhances Superb Audio Performance
• LED Indicator for Valid Power and Network Sync
• Operation from PoE Power (Class 0, IEEE 802.3af)
• Equipped for SysFlex™ Rack Mounting or Surface Mounting
