DA1414

BLUSTREAM 14x14 Dante Audio Matrix with balanced / unbalanced analogue and USB audio

DA1414
14x14 Audio Matrix with Dante® and USB

The DA1414 is an advanced PoE+ powered audio matrix designed for efficient and seamless distribution of various audio sources across a multi-zone setup. The unit offers advanced audio processing features such as independent routing and mixing of mono audio signals, volume control, balance adjustments, and up to an 8-band parametric equaliser, including high/low shelf, and high/low pass filtering on both the input and output stages.

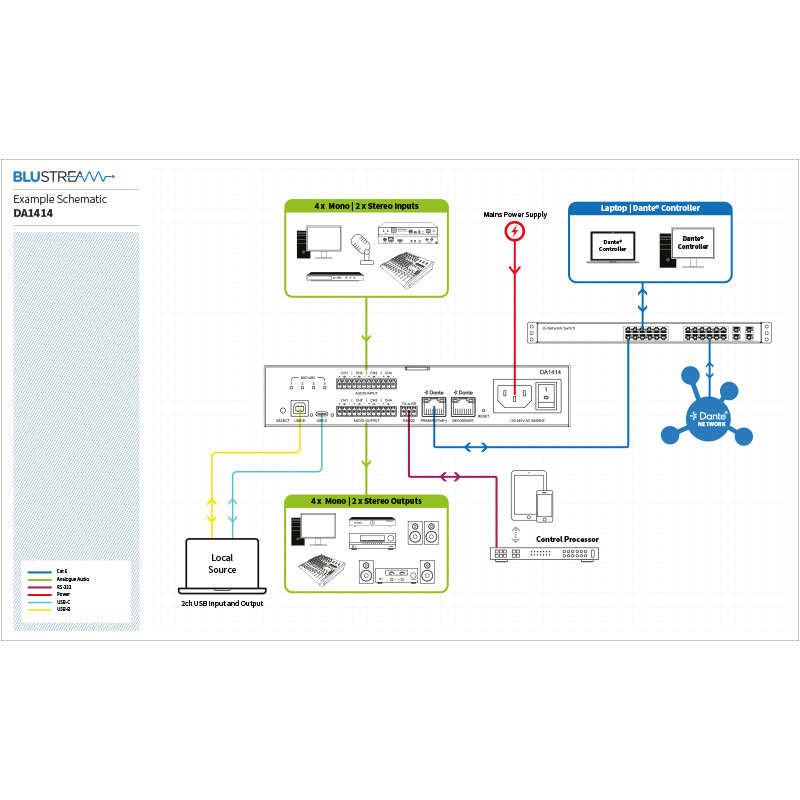

Equipped with 8 x Dante/AES67, 4 x balanced/unbalanced analogue, and 2 x USB audio inputs, it supports matrix routing and processing to 8 x Dante/AES67, 4 x balanced/ unbalanced analogue, and 2 x USB audio channels.

The system includes API switching functionality, giving users the ability to route Dante channels via third party control platforms, bypassing standard Dante Controller or Domain Manager platforms.

The analogue inputs feature selectable 48V phantom power for microphone or line-level connectivity. Additionally, USB-C / USB-B connectivity options ensure maximum flexibility, catering for many diverse system designs.

The DA1414 offers an advanced yet cost-effective solution for seamlessly routing and controlling audio signals within both commercial or residential environments, regardless of the source type.

Key Features
• 14 x 14 audio Matrix with Dante/AES67, balanced / unbalanced analogue, and USB audio connectivity
• Supports separation (mono) of all audio channels with independent control resulting in switching of up to 14x14 audio feeds
• Analogue audio inputs support both balanced and unbalanced audio, with MIC line level signals
• MIC line level supports 48V Phantom power
• Selectable USB audio between USB-C and USB Type-B inputs with USB audio class 2.0 support
• Supports: volume, balance, 8 band parametric equaliser control with high/low shelf and high/low pass filter, per input and output channel
• Supports 48kHz 24-bit sampling rate for A/D and D/A conversion
• Supports 44.1, 48, & 96kHz sample rates @ 24-bit
• Configurable Dante device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante Controller)
• Features 2 x Dante LAN ports supporting network redundancy
• Supports AES67 RTP audio transport
• Supports power via PoE+ (Class 4 IEEE 802.3at) via Primary LAN connection, or from local power supply where no PoE is available

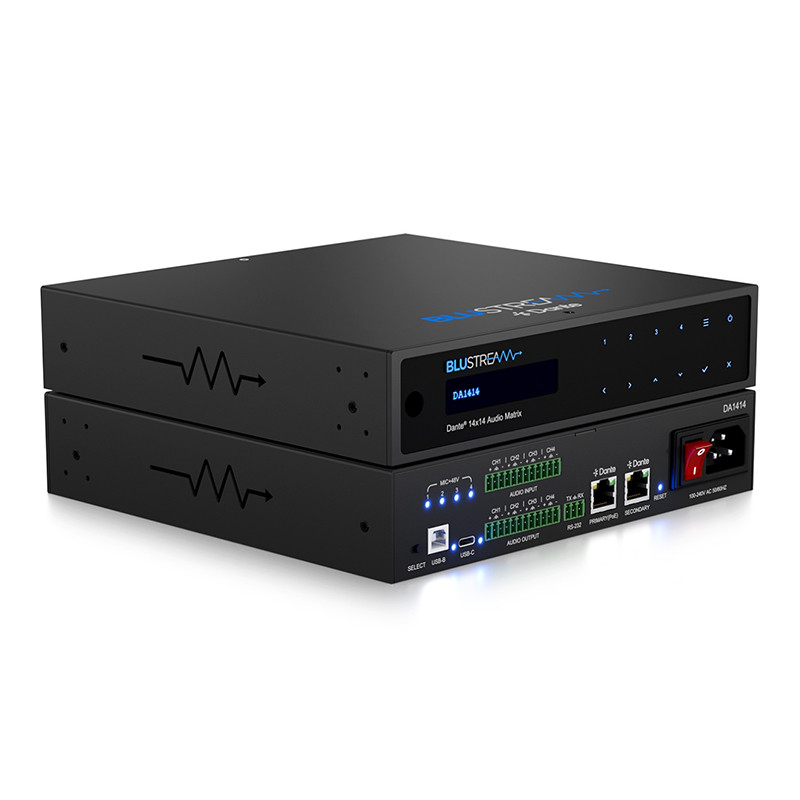

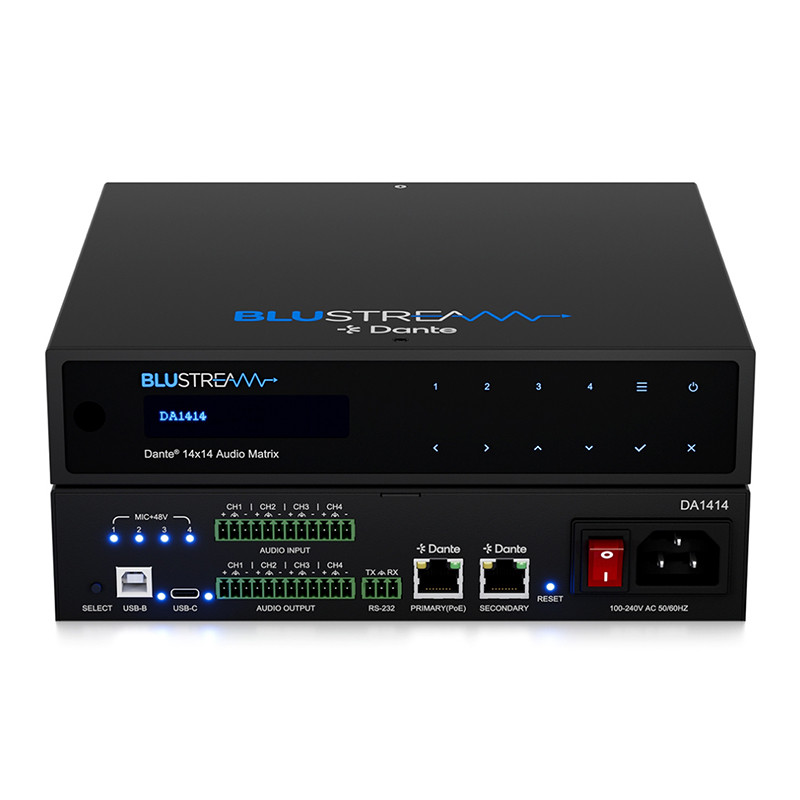

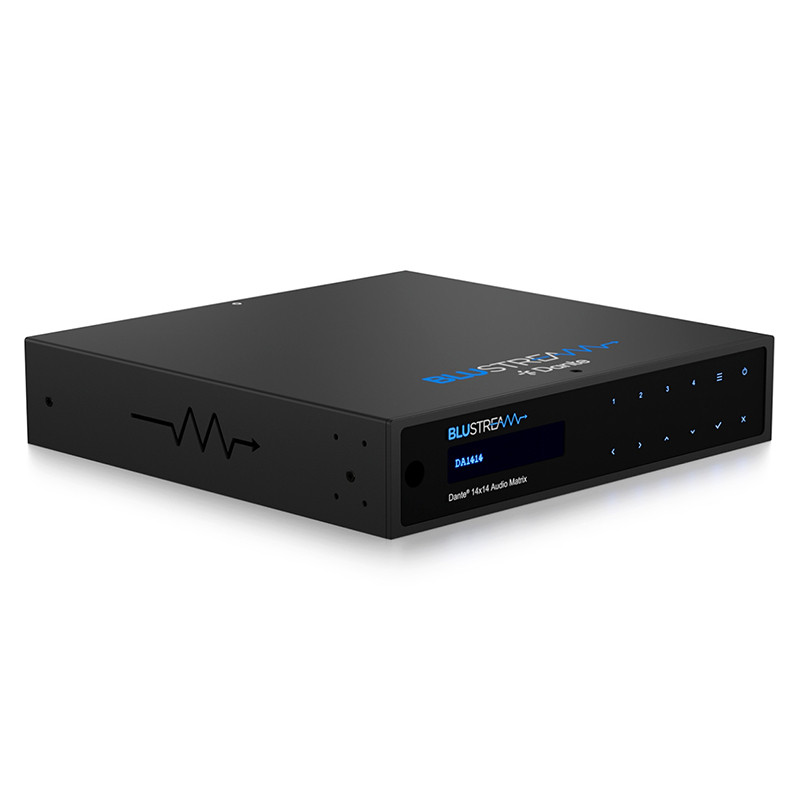

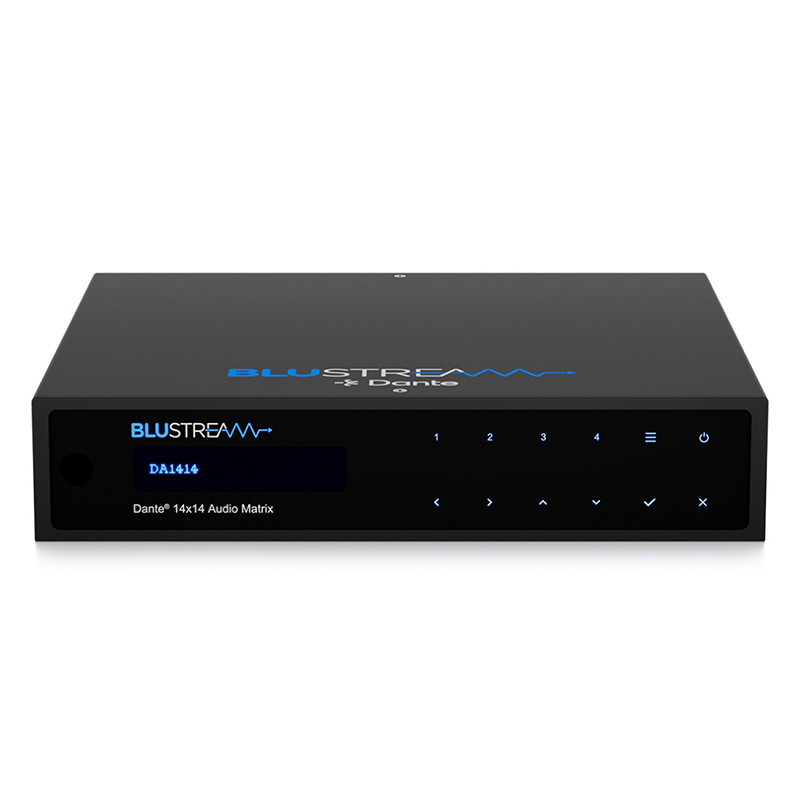

• Control via front panel, RS-232, TCP/IP, and web-GUI
• 1U design for 19” rack mount integration - rack mounting kit included

Specifications
• Casing Dimensions (W x D x H): 437mm x 245mm x 44mm
• Dimensions Including Connections (W x D x H): 437mm x 252mm x 44mm
• Shipping Weight: 3.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: Internal 110-250V AC

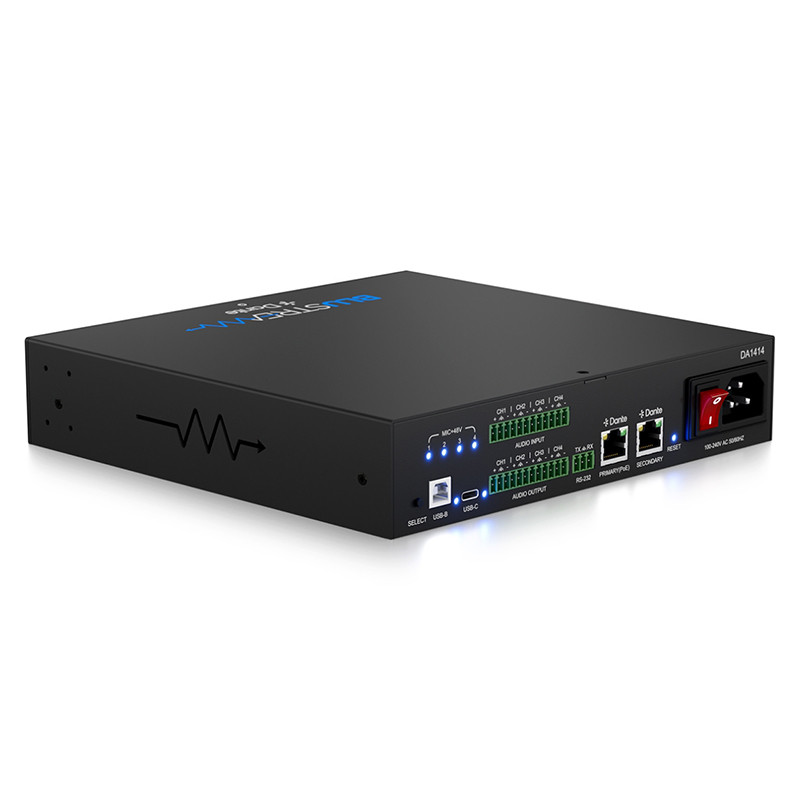

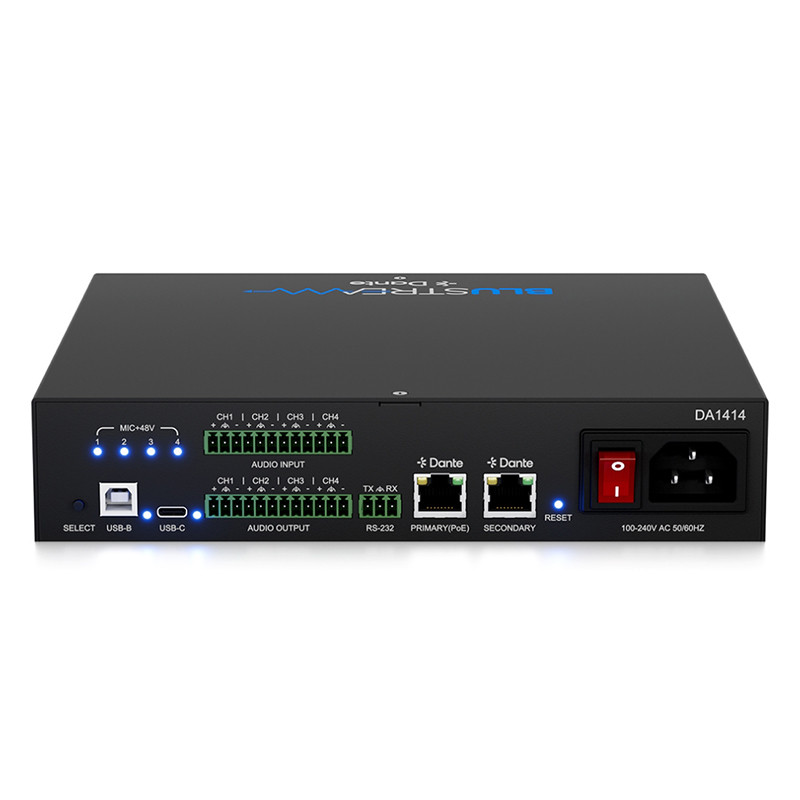

• Audio Input Connectors: 2 x RJ45, female (1Gb Dante Primary/Secondary network), 12-PIN Phoenix connector (4ch balanced/unbalanced analogue audio/MIC), USB-B, USB-C
• Audio Output Connectors: 2 x RJ45, female (1Gb Dante™ Primary/Secondary network), 12-pin Phoenix connector (4ch balanced/unbalanced analogue audio/MIC), USB-B, USB-C
• RS-232 serial port: 1 x 3-Pin Phoenix connector
• TCP/IP Control: 2 x RJ45, female (1Gb Dante Primary / Secondary network)

Box Contents
1 x DA1414
9 x 3 pin 3.5mm pitch Phoenix Connector
1 x 19” Rack Mounting Kit
4 x Mounting Feet
1 x Quick Reference Card
IEC Power Cable(s)
