BLUSTREAM 2x2 Dante XLR Audio Converter, incl. backbox
Line / MIC 2+2 XLR Dante® Audio Wall Plate EU
Description

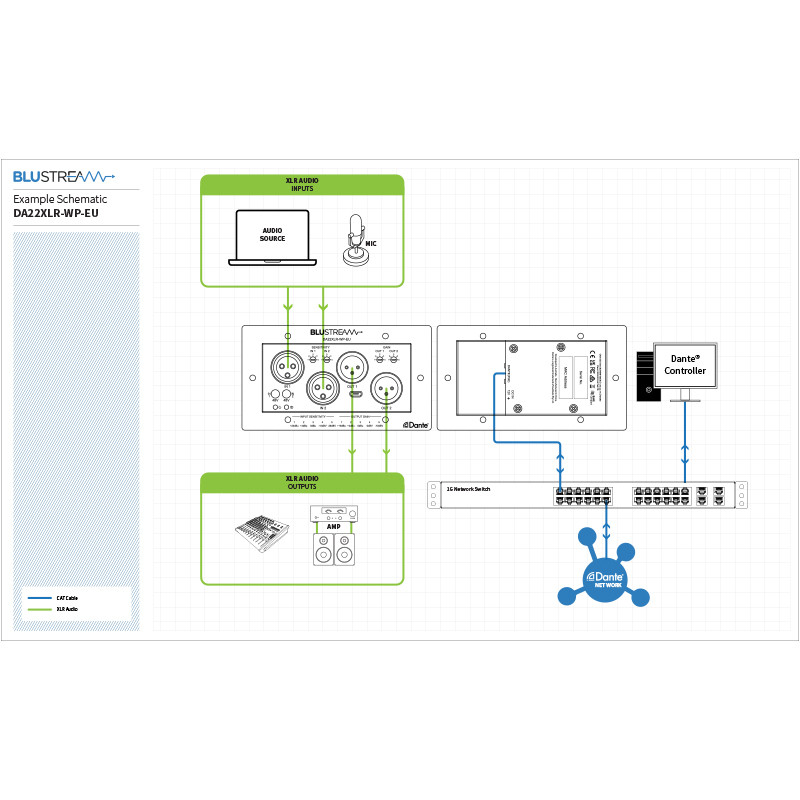

The DA22XLR-WP is a multi-input / output wall plate to convert analogue audio within a digital Dante® networked audio system.
The DA22XLR-WP features 2 input channels of balanced / unbalanced / MIC audio with switchable 48v phantom power and 2 output channels of balanced / unbalanced audio.
The DA22XLR-WP is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows for both UK & EU backbox compatibility.
Key Features
• Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
• Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
• Switchable 48V Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
• Adjustable line gain from +18 dBu to -10 dBV for each XLR output
• Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (not included) for when network switch does not support PoE
• Magnetic faceplate surround allowing for both UK & EU backbox compatibility
*Dante® is a registered trademark of Audinate Pty Ltd
Specifications

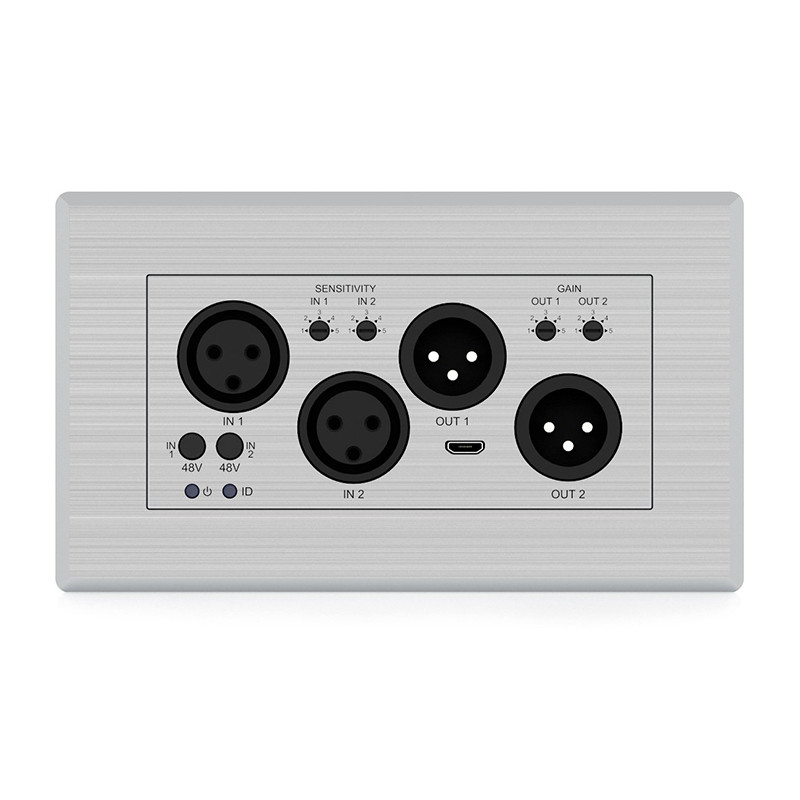

• Audio Input Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
• Audio Output Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector

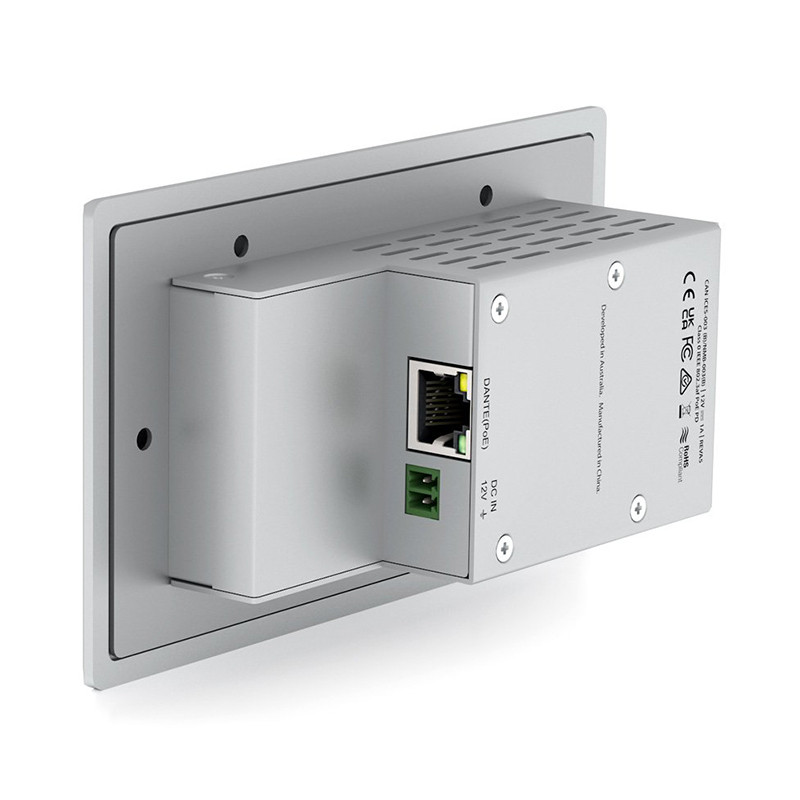

• Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)
• Configuration Switches: 4 x 5 position rotary dials (Sensitivity / Gain), 2 x Push button (48V Phantom power)
• Firmware Upgrade: 1 x Micro-USB UART port
• Module Dimensions (L x W x H): 136mm x 76mm x 45mm (without faceplate)
• Faceplate Dimensions (L x W x H): 146mm x 86mm x 5mm
• Cut Out Dimensions (L x W x H): 109mm x 50mm x 36mm
• Mounting Hole Spacing: UK 121mm CTC, EU 60mm CTC
• Backbox Requirements: UK double gang backbox / EU double gang backbox - 47mm backbox included
• Shipping Weight: 0.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
• Power Supply: Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector
Box Contents
1 x DA22XLR-WP
1 x Magnetic Faceplate
1 x 2-Gang Backbox (D: 47mm)
1 x Quick Reference Guide
