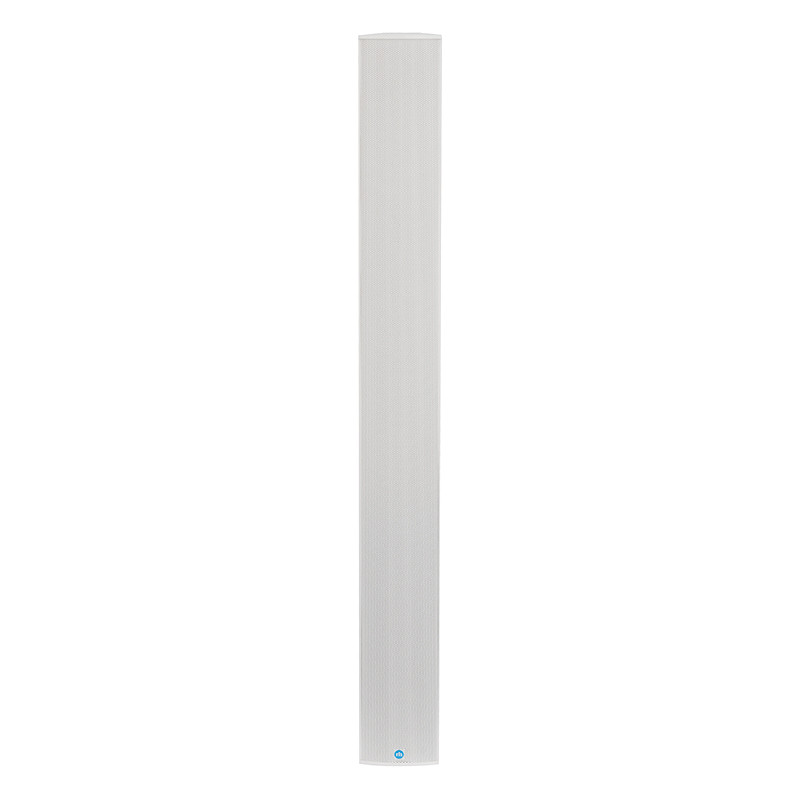

ICC12/3
Ultimate Flexibility in a Smaller Array

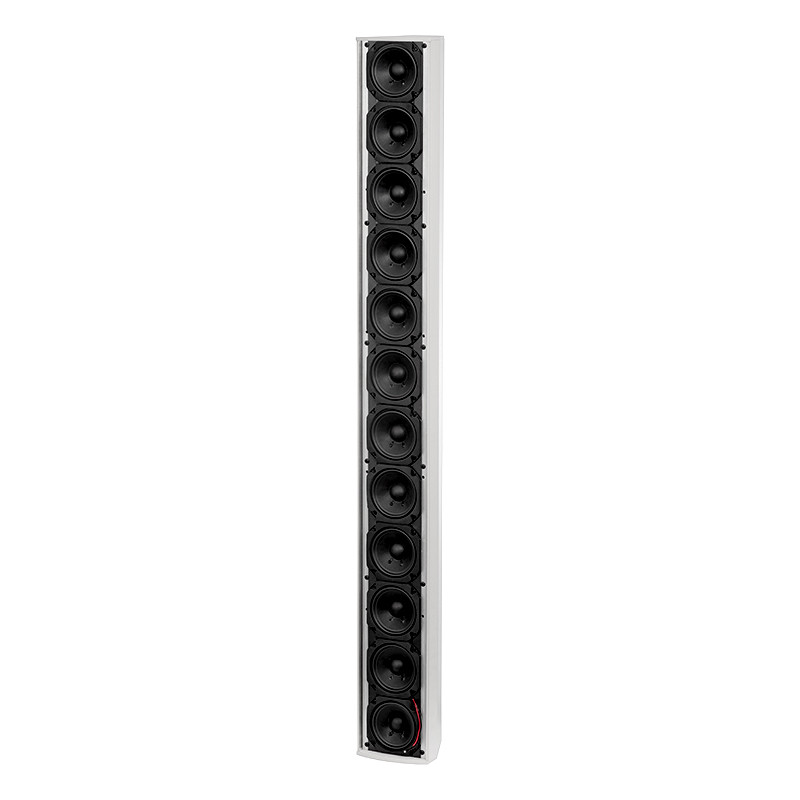

The Iconyx Compact series ICC12/3 brings the ultimate flexibility of the ICONYX Gen5 series to a smaller footprint array. An all-new twelve-channel digital amplifier powers twelve 3″/77 mm full-range, high sensitivity, treated paper cone drivers. With an amplifier and DSP channel for each driver, all of the flexibility of ICONYX is now available in a package nearly 40% smaller than the classic ICONYX.
While the package is smaller, the performance is not. Full RHAON II beam steering with our latest U.R.G.O beam algorithms allows for a movable acoustic center, multiple beam opening angles and high-pass filtering of individual beams — all with the fidelity and musicality expected of a Renkus-Heinz product.
The ICC12/3 brings the performance and directivity of ICONYX to spaces where even the classic ICONYX arrays are too large. The very narrow cabinet will disappear into nearly any venue, while the high vertical directivity of the ICC12/3 can penetrate even challenging acoustics, taking the exceptional performance of beam-steered line arrays to the most architecturally sensitive spaces.
The included wall-mount bracket makes mounting easy and is nearly invisible behind the array.
The ICC12/3 is available in white and black standard; custom color matching is optional. Standard -RN units have analog and AES inputs, and -RD1 units include Dante network audio.
ICC12/3-RN & ICC12/3-RD1
Frequency Response:
ICC12/3-RN: 135 Hz to 17 kHz (– 3dB), 110 Hz to 20 kHz (-10 dB)
ICC12/3-RD1: 135 Hz to 17 kHz (– 3dB), 110 Hz to 20 kHz (-10 dB)
Calculated Max SPL:
ICC12/3-RN: 129 dB Peak, whole-space (99 dB @ 100 Ft. (30.5 meters)
ICC12/3-RD1: 129 dB Peak, whole-space (99 dB @ 100 Ft. (30.5 meters)
Dispersion:
ICC12/3-RN: 120º horizontal below 3 kHz, 90º above 3 kHz x adjustable vertical
ICC12/3-RD1: 120º horizontal below 3 kHz, 90º above 3 kHz x adjustable vertical
Aiming Angle:
ICC12/3-RN: Adjustable from –30º to +30º
ICC12/3-RD1: Adjustable from –30º to +30º
Beam Control:
ICC12/3-RN: Steerable from 800 Hz and up, directivity from 400 Hz and up.
ICC12/3-RD1: Steerable from 800 Hz and up, directivity from 400 Hz and up.
Sensitivity:
ICC12/3-RN: 1.4 volt RMS for rated output, analog
ICC12/3-RD1: 1.4 volt RMS for rated output, analog
Transducers:
ICC12/3-RN: 12 x 3 in./77 mm, full-range, high sensitivity, treated paper cone drivers
ICC12/3-RD1: 12 x 3 in./77 mm, full-range, high sensitivity, treated paper cone drivers
Inputs:
ICC12/3-RN: Analog and Loop-outAES and Loop-out
ICC12/3-RD1: Analog and Loop-out AES and Loop-out, Dante digital network audio
Connector:
ICC12/3-RN: 2 x Phoenix, In & Loop-out, analog and AES.2 x RJ45 Primary & Secondary Ethernet/RHAON II
ICC12/3-RD1: 2 x Phoenix, In & Loop-out, analog and AES.2 x RJ45 Primary & Secondary Ethernet/RHAON II/Dante
Enclosure:
Folded aluminum
Grille:
16 GA powder-coated, plated, perforated steel
Finish:
ICC12/3-RN: Black (RAL9011) or White (RAL9010) paint, standard, custom color available.
ICC12/3-RD1: Black (RAL9011) or White (RAL9010) paint, standard, custom color available.
Mounting:
W-WALL-IC3 wall mount bracket, included
Dimensions:
4-3/8 in. (111 mm) wide, 39-1/2 in. (1003 mm) high, 4-3/4 in. (121 mm) deep
Weight:
26 lbs/12 kg
ICC 12 Channel Amplifier
Power Output:
ICC12/3-RN: Twelve channel amplifier. Multi-band peak and thermal limiting on all channels protects the drivers.
ICC12/3-RD1: Twelve channel amplifier. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage:
ICC12/3-RN: 100-240 volts, 50/60 Hz, auto-switching
ICC12/3-RD1: 100-240 volts, 50/60 Hz, auto-switching
Power Consumption:
Idle: 0.15 A (120 V) / 0.07 A (240 V)
1/8 power: 0.43 A (120 V) / 0.22 A (240 V) (onset of limiting)
1/3 power: 1.14 A (120 V) / 0.57 A (240 V) (hard limiting)
Power Connector:
IEC-C14 mains power
Latency:
ICC12/3-RN: 9 ms
ICC12/3-RD1: 9 ms + Dante transport latency (If using Dante input)
User DSP:
ICC12/3-RN: Eight parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
ICC12/3-RD1: Eight parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Temperature Limits:
Max.: 140º F/60º C, with no direct sun exposure
Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
