RDL D-panel, stereo phono & mini-tele in - stereo ut, stål
Consumer Input Jacks - Stereo
Features:
· Stereo Inputs to Stereo Outputs
· Stereo Inputs on RCA Jacks and Stereo Mini-Jack
· Unbalanced to Balanced Conversion Without Gain
· Transformer Isolation for Unbalanced Line Inputs
· Hum Cancellation on Unbalanced Line Inputs
· Line-Level Output to Feed 10 kΩ Equipment Inputs
· Output Connections on Detachable Terminal Block
· Available in RDL White/Gray (D-CIJ3D)
· Available in Stainless Steel (DS-CIJ3D)
The D/S-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

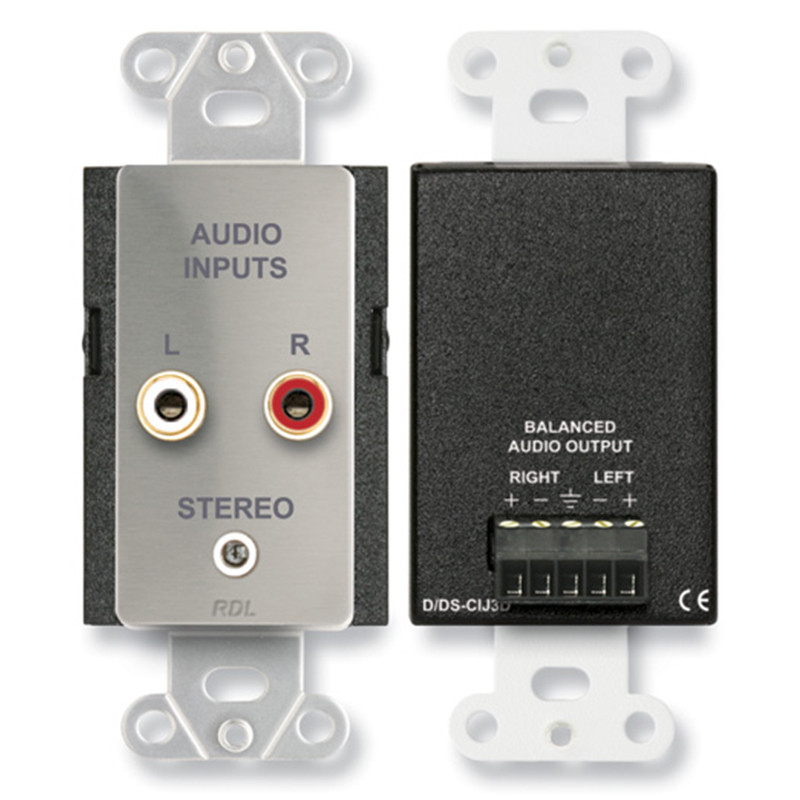

The D/S-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.
Consumer Input Jacks - Stereo
Features:
· Stereo Inputs to Stereo Outputs
· Stereo Inputs on RCA Jacks and Stereo Mini-Jack
· Unbalanced to Balanced Conversion Without Gain
· Transformer Isolation for Unbalanced Line Inputs
· Hum Cancellation on Unbalanced Line Inputs
· Line-Level Output to Feed 10 kΩ Equipment Inputs
· Output Connections on Detachable Terminal Block
· Available in RDL White/Gray (D-CIJ3D)
· Available in Stainless Steel (DS-CIJ3D)
The D/S-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.
The D/S-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.
- Typ
- Väggpanel stereo in/ut
- Frekvensomfång
- (Linjenivå) +/-1 dB: 50 20.000 Hz
- Kontakter in
- 2 x guldpläterade/3,5 mm minijack
- Kontakter ut
- Löstagbar skruvplint
- Kanaler in stereo (antal)
- 1 st
- Utgångar stereo (antal)
- 1 st
- Mått (BxHxD)
- 43.2 x 104,9 x 54,7 mm
