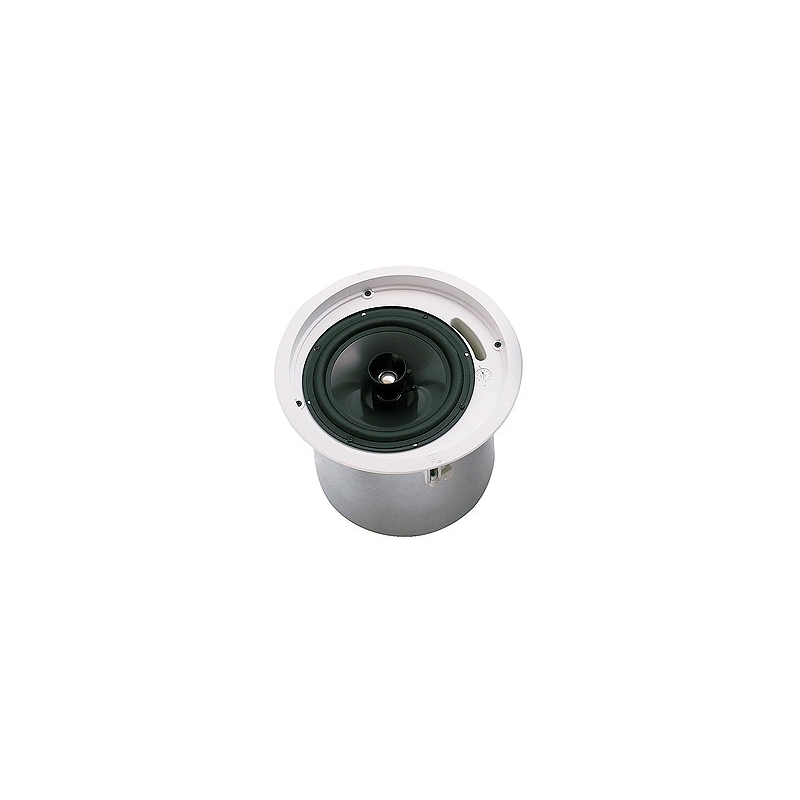

EV EVID C8.2 Ceiling 8” Two-Way Coaxial Ceiling Loudspeaker System (Pair)
EVID C8.2
8" 2‑way coaxial ceiling loudspeaker
• Ported enclosure for extended bass response
• Waveguide-coupled 1-inch titanium-coated tweeter
• Full-bandwidth overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires no additional accessories
The Electro-Voice ® EVID C8.2 loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2 loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C8.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended low-frequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4- pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. The EVID C8.2D model features a 3-pin fire-safety rated input block. A tile bridge is included for safe suspension of the C8.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
EVID C8.2
8" 2‑way coaxial ceiling loudspeaker
• Ported enclosure for extended bass response
• Waveguide-coupled 1-inch titanium-coated tweeter
• Full-bandwidth overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires no additional accessories
The Electro-Voice ® EVID C8.2 loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2 loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C8.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended low-frequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4- pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. The EVID C8.2D model features a 3-pin fire-safety rated input block. A tile bridge is included for safe suspension of the C8.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
- Typ
- Fullrange takhögtalare
- Frekvensomfång
- 50 - 20.000 Hz
- Kontakter in
- Typ Phoenix, löstagbara
- Vikt
- 5,0 kg
- Färg
- Vit
- Spridning
- Konisk 110 °
- Max SPL 1m
- 117 dB
- Baselement
- 8" Polypropylenkon
- Diskantelement
- 1" Titanium/Mylarlaminat
- Material
- Baffel: ABS-plast, hölje:zinkpläterad stål
- Effekttålighet
- RMS/Toppvärde 100/400 W
- Effektuttag trafo (100V)
- 3,75, 7,5, 15 eller 30 W
- Känslighet 1W/1m
- 91 dB
- Impedans
- 8 Ω
