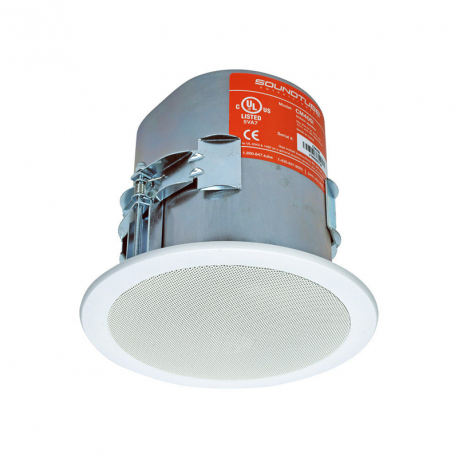

Soundtube Infälld takhögtalare, 4" coaxial, 20W, 100V, vit
One 4.0 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling. Rapid installation blind-mount, fixed-wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.025 inch (0.6 mm) to 1.87 inch (47.5 mm). Easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly for ease of install and in-field painting. Powder-coated steel grille for lasting durability. 90 dB average sensitivity offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved. Included accessories: Color-coded (orange) tile bridge, paint mask, Euroblock connector and UL cover plate.
One 4.0 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling. Rapid installation blind-mount, fixed-wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.025 inch (0.6 mm) to 1.87 inch (47.5 mm). Easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly for ease of install and in-field painting. Powder-coated steel grille for lasting durability. 90 dB average sensitivity offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved. Included accessories: Color-coded (orange) tile bridge, paint mask, Euroblock connector and UL cover plate.
- Typ
- Infälld takhögtalare
- Frekvensomfång
- 75-22000 (±10 dB) Hz
- Vikt
- 2,5 kg
- Färg
- Vit
- Spridning
- 100 °
- Max SPL 1m
- 100 dB
- Delningsfrekvens
- 1800 Hz
- Baselement
- 4" Polypropylene Cone with Butyl Rubber Surround
- Diskantelement
- 1" Convex Aluminium Tweeter
- Effekttålighet
- 20 (RMS) W
- Effektuttag trafo (100V)
- 20/10/5
- Känslighet 1W/1m
- 87 dB
- Impedans
- 4 Ω
- Mått infällnad (Ø x D)
- 207x178,3 mm
