SoundTube 3-in infälld högtalare, inomhus/utomhus, svart

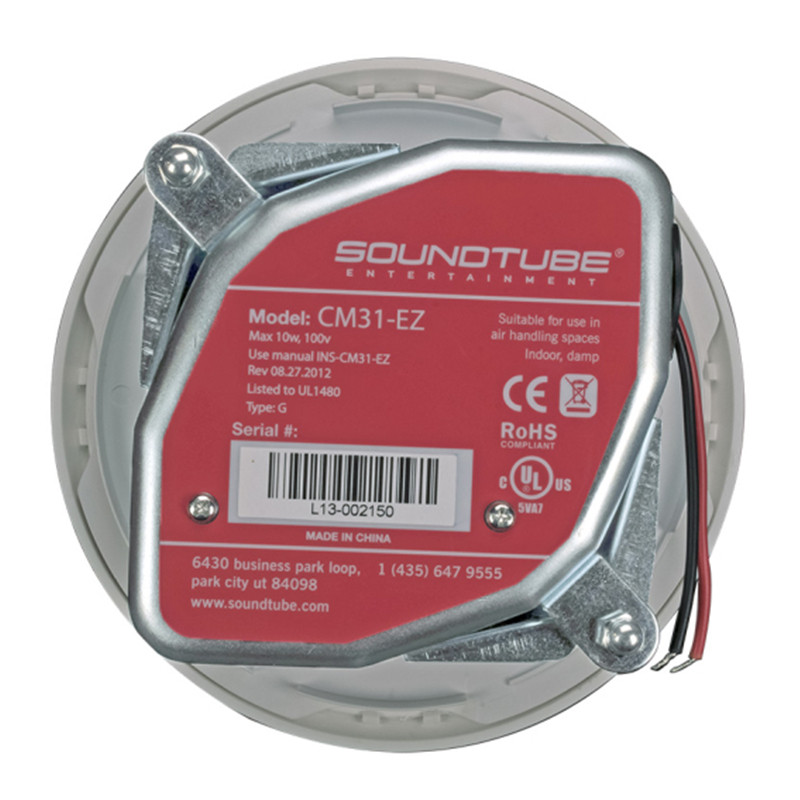

SoundTube CM31-EZ In Ceiling Speaker in Black
The CM31-EZ is a premium full-range 3” in-ceiling speaker for applications requiring 8 Ω or distributed audio solutions. The CM31-EZ incorporates low profile grille with a total visible footprint of 6.3” diameter and an integrated backcan and driver design for ultra compact in-ceiling installations. The in-ceiling speaker includes a six-position tap switch with a transformer bypass position. A tile bridge and mounting hardware are included and feature a fast and secure constant tension SpeedWing™ mounting system. The CM31-EZ incorporates weatherized components for indoor and outdoor applications.
Features
• One 3” (76.2 mm) full-range high-extrusion, highfidelity polypropylene driver with butyl rubber surround
• Weatherized components for indoor/outdoor applications
• Shallow 3.5” (88.9 mm) deep all-steel backcan with integrated driver and baffle configuration
• Ultra-compact design with a total visible footprint of less than 6.3” (160.6 mm) diameter
• Rapid installation, blind-mount, fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1” (2.5 mm) to 1.5” (38.1 mm)
• Corrosion-resistant, powder-coated aluminum grille with snap fit attachment
• UL1480A and 2043 approved
• High-quality black or white paint finish
• Included accessories: tile bridge, conduit connector, paint mask, and wire nuts
• Optional accessories: pre-construction bracket (AC-CM3-PCB)
3 inch PREMIUM FULL-RANGE IN-CEILING SPEAKERS. One 3 inch (76.2 mm) full-range high-extrusion, high-fidelity polypropylene driver with butyl rubber surround. Weatherized components for indoor/outdoor applications. Shallow 3.5 inch (88.9 mm) deep all-steel backcan with integrated driver and baffle configuration. Ultra-compact design with a total visible footprint of less than 6.3 inch (160.6 mm)diameter. Rapid installation, blind-mount, fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1 in. (2.5 mm) to 1.5 in. (38.1 mm). Corrosion-resistant, powder-coated aluminum grille with snap fit attachment. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. UL 1480 (UEAY) and 2043 approved.
Included accessories: Choose between a Tile Bridge or a Pre Construction Bracket.
IP-Rating: IP54.
Specifications
Color: Black
UPC: 752830439887
Manufacturer: SoundTube
Manufacturer's Category: CM-EZ Economical In-Ceiling
Shipping Weight: 3.7 lbs / 1.68 kg
Carton Height: 8.25 in / 209.55 mm
Carton Length: 8 in / 203.2 mm
Carton Width: 7.25 in / 184.15 mm
Certifications: CE, RoHS, UL1480A, UL2043
Enclosure Properties: ABS Glass Fiber Reinforced, Injection Molded, Sealed
Enclosure Volume: 60 cu in / 983.22 cu cm
Included Accessories: Conduit Clamp, Grille, Paint Mask, Wire Nuts, Choose Between a Tile Bridge or Pre-Construction Bracket
Optional Accessories: Black Grille (GRL-CM31-BK)|Tile Bridge (AC-CM31-TB)|Pre-Construction Bracket (AC-CM31-PCB)|Junction Box (Included with pre-construction bracket)
Source Inputs: Wire Leads
IP Rating: IP54
Backcan Diameter: 5.5 in / 139.7 mm
Backcan Height: 3.5 in / 88.9 mm
Coverage Angle (±6dB @ 2kHz): 45°
Cutout Width/Diameter: 5.5 in / 139.7 mm
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz): 4.5 and 3.5
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz): 5.3dB and 5.2dB
Frequency Response (± 10 dB): 115 Hz - 22 kHz
Frequency Response (± 3 dB): 190 Hz - 14 kHz
Grille Properties: Aluminum, Black, Standard-Flange, Powder-Coated, Snap-Fit
Low Frequency Voice Coil: 0.75 in / 19 mm
Max. Ceiling Thickness: 1.5 in / 38.1 mm
Max. Continuous Power RMS: 20W
Max. Program Power: 40 W
Minimum Impedance (Ω Ohms): 8 Ω
Minimum Ceiling Thickness: 0.1 in / 2.5 mm
Nominal Impedance (Ω Ohms): 8 Ω
Fullrange Driver: 3" Polypropylene driver with butyl rubber surround
Sensitivity dB @ 1W/1M: 85 dB
Sensitivity dB @ 2.83V/1M: 85 dB
Tap Selector: Rotary Switch
Transformer Options: 25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V): 1.3W/10W/30W
Visible Diameter: 6.3 in / 160 mm
Visible Height: 0.6 in / 15.2 mm
SoundTube CM31-EZ In Ceiling Speaker in Black
The CM31-EZ is a premium full-range 3” in-ceiling speaker for applications requiring 8 Ω or distributed audio solutions. The CM31-EZ incorporates low profile grille with a total visible footprint of 6.3” diameter and an integrated backcan and driver design for ultra compact in-ceiling installations. The in-ceiling speaker includes a six-position tap switch with a transformer bypass position. A tile bridge and mounting hardware are included and feature a fast and secure constant tension SpeedWing™ mounting system. The CM31-EZ incorporates weatherized components for indoor and outdoor applications.
Features
• One 3” (76.2 mm) full-range high-extrusion, highfidelity polypropylene driver with butyl rubber surround
• Weatherized components for indoor/outdoor applications
• Shallow 3.5” (88.9 mm) deep all-steel backcan with integrated driver and baffle configuration
• Ultra-compact design with a total visible footprint of less than 6.3” (160.6 mm) diameter
• Rapid installation, blind-mount, fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1” (2.5 mm) to 1.5” (38.1 mm)
• Corrosion-resistant, powder-coated aluminum grille with snap fit attachment
• UL1480A and 2043 approved
• High-quality black or white paint finish
• Included accessories: tile bridge, conduit connector, paint mask, and wire nuts
• Optional accessories: pre-construction bracket (AC-CM3-PCB)
3 inch PREMIUM FULL-RANGE IN-CEILING SPEAKERS. One 3 inch (76.2 mm) full-range high-extrusion, high-fidelity polypropylene driver with butyl rubber surround. Weatherized components for indoor/outdoor applications. Shallow 3.5 inch (88.9 mm) deep all-steel backcan with integrated driver and baffle configuration. Ultra-compact design with a total visible footprint of less than 6.3 inch (160.6 mm)diameter. Rapid installation, blind-mount, fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1 in. (2.5 mm) to 1.5 in. (38.1 mm). Corrosion-resistant, powder-coated aluminum grille with snap fit attachment. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. UL 1480 (UEAY) and 2043 approved.
Included accessories: Choose between a Tile Bridge or a Pre Construction Bracket.
IP-Rating: IP54.
Specifications
Color: Black
UPC: 752830439887
Manufacturer: SoundTube
Manufacturer's Category: CM-EZ Economical In-Ceiling
Shipping Weight: 3.7 lbs / 1.68 kg
Carton Height: 8.25 in / 209.55 mm
Carton Length: 8 in / 203.2 mm
Carton Width: 7.25 in / 184.15 mm
Certifications: CE, RoHS, UL1480A, UL2043
Enclosure Properties: ABS Glass Fiber Reinforced, Injection Molded, Sealed
Enclosure Volume: 60 cu in / 983.22 cu cm
Included Accessories: Conduit Clamp, Grille, Paint Mask, Wire Nuts, Choose Between a Tile Bridge or Pre-Construction Bracket
Optional Accessories: Black Grille (GRL-CM31-BK)|Tile Bridge (AC-CM31-TB)|Pre-Construction Bracket (AC-CM31-PCB)|Junction Box (Included with pre-construction bracket)
Source Inputs: Wire Leads
IP Rating: IP54
Backcan Diameter: 5.5 in / 139.7 mm
Backcan Height: 3.5 in / 88.9 mm
Coverage Angle (±6dB @ 2kHz): 45°
Cutout Width/Diameter: 5.5 in / 139.7 mm
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz): 4.5 and 3.5
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz): 5.3dB and 5.2dB
Frequency Response (± 10 dB): 115 Hz - 22 kHz
Frequency Response (± 3 dB): 190 Hz - 14 kHz
Grille Properties: Aluminum, Black, Standard-Flange, Powder-Coated, Snap-Fit
Low Frequency Voice Coil: 0.75 in / 19 mm
Max. Ceiling Thickness: 1.5 in / 38.1 mm
Max. Continuous Power RMS: 20W
Max. Program Power: 40 W
Minimum Impedance (Ω Ohms): 8 Ω
Minimum Ceiling Thickness: 0.1 in / 2.5 mm
Nominal Impedance (Ω Ohms): 8 Ω
Fullrange Driver: 3" Polypropylene driver with butyl rubber surround
Sensitivity dB @ 1W/1M: 85 dB
Sensitivity dB @ 2.83V/1M: 85 dB
Tap Selector: Rotary Switch
Transformer Options: 25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V): 1.3W/10W/30W
Visible Diameter: 6.3 in / 160 mm
Visible Height: 0.6 in / 15.2 mm
