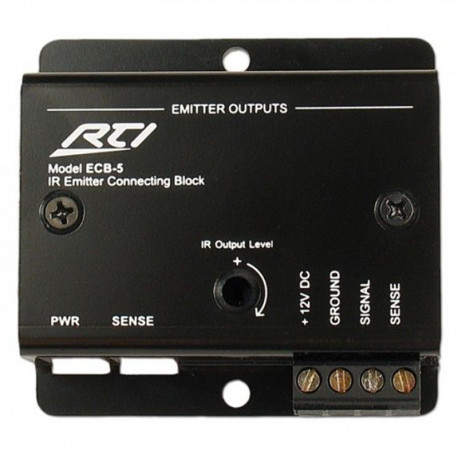

ECB-5 IR Emitter Connecting Block
The ECB-5 IR Emitter Connecting Block provides expanded infrared signal distribution when used with RTI control processors, in-wall touchpanels, device connecting blocks (CB4/CB8), third party infrared repeater systems, etc. It has one infrared signal input and five emitter output ports that allow the connection of up to five single or dual infrared emitters. It also incorporates a sense input for monitoring the power status of a switched outlet, current sensor, light sensor, etc.
Key Features
• Five infrared emitter outputs
• Power sense input
• Variable IR output power
• Steel construction
• No power supply required for operation
Specification
Power: +9VDC to +16VDC, 1.5A
Number or Output Ports: Five
Output Ports: 3.5 mm jacks. Works with industry standard IR emitters.
IR Output Drive: 100mA maximum (per port, adjustable)
Infrared Input: Compatible with industry standard repeaters/receivers
Mounting: Wall-mount or free standing
Dimensions (H x W): 2.6” (66mm) x .9” (23mm) x 2.4” (61mm)
Operating Temperature: +32°F to +122°F (0°C to +50°C)
Operating Humidity: 5% to 95% Non-condensing
Weight: 4oz (108g)
Warranty: Three Years (Parts & Labor)
ECB-5 IR Emitter Connecting Block
The ECB-5 IR Emitter Connecting Block provides expanded infrared signal distribution when used with RTI control processors, in-wall touchpanels, device connecting blocks (CB4/CB8), third party infrared repeater systems, etc. It has one infrared signal input and five emitter output ports that allow the connection of up to five single or dual infrared emitters. It also incorporates a sense input for monitoring the power status of a switched outlet, current sensor, light sensor, etc.
Key Features
• Five infrared emitter outputs
• Power sense input
• Variable IR output power
• Steel construction
• No power supply required for operation
Specification
Power: +9VDC to +16VDC, 1.5A
Number or Output Ports: Five
Output Ports: 3.5 mm jacks. Works with industry standard IR emitters.
IR Output Drive: 100mA maximum (per port, adjustable)
Infrared Input: Compatible with industry standard repeaters/receivers
Mounting: Wall-mount or free standing
Dimensions (H x W): 2.6” (66mm) x .9” (23mm) x 2.4” (61mm)
Operating Temperature: +32°F to +122°F (0°C to +50°C)
Operating Humidity: 5% to 95% Non-condensing
Weight: 4oz (108g)
Warranty: Three Years (Parts & Labor)
