UEX100E-KIT

BLUSTREAM USB 2.0 HDBaseT Extender Set - 100m

USB 2.0 HDBaseT™ Extender Set - 100m, 4x USB-A devices to 1x USB-B host, bi-directional PoC, IR & RS-232, Ethernet, and 2ch analogue audio pass through

Description

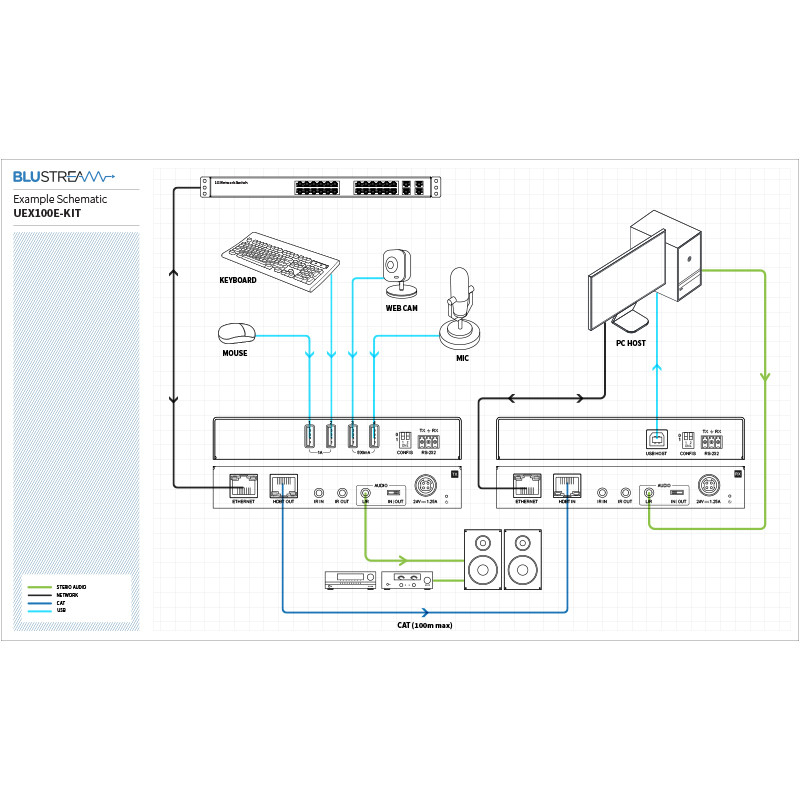

The UEX100E-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 2.0 data, 2ch analogue audio, and control signals up to 100m over a single CAT cable.

The UEX100E-KIT allows up to 4x USB devices to be connected to a single USB host with support for a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.

The UEX100E-KIT also provides bi-directional Power over Cable (PoC), bi-directional IR, RS-232, 2ch analogue audio, and 100Mbps Ethernet/LAN pass through.

Key Features
• Extends USB up to a distance of 100m over a single CAT cable using HDBaseT™ technology*
• Supports USB 2.0 signal extension
• Backwards compatible with USB 1.1 devices
• Transmitted data bandwidth up to 480Mbps (combined)
• 1 x USB-B port on the receiver for connection to host device
• 4 x USB-A ports on transmitter for connection to devices
• USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA
• Bi-directional Ethernet pass-through (100Mbps)
• Bi-directional IR & RS-232 pass through
• Supports 2ch PCM Analogue Audio pass through (direction selectable)
• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
• Simple plug and play, no driver installation or setup required

*Signal distribution length subject to length of device / host USB cables and CAT cable type

Specifications

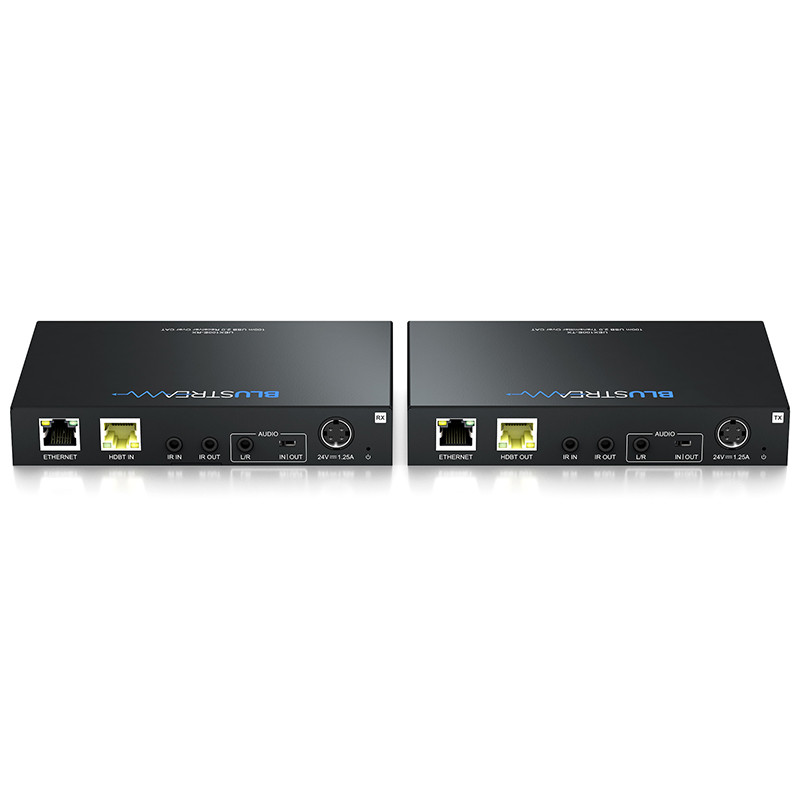

UEX100E-RX
• CAT Connector: 1 x RJ45 connector, female
• USB Port: 1 x USB-Type B
• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo jack)
• Ethernet Port: 1 x RJ45 connector, female
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Config Switch: 2-pin DIP switch

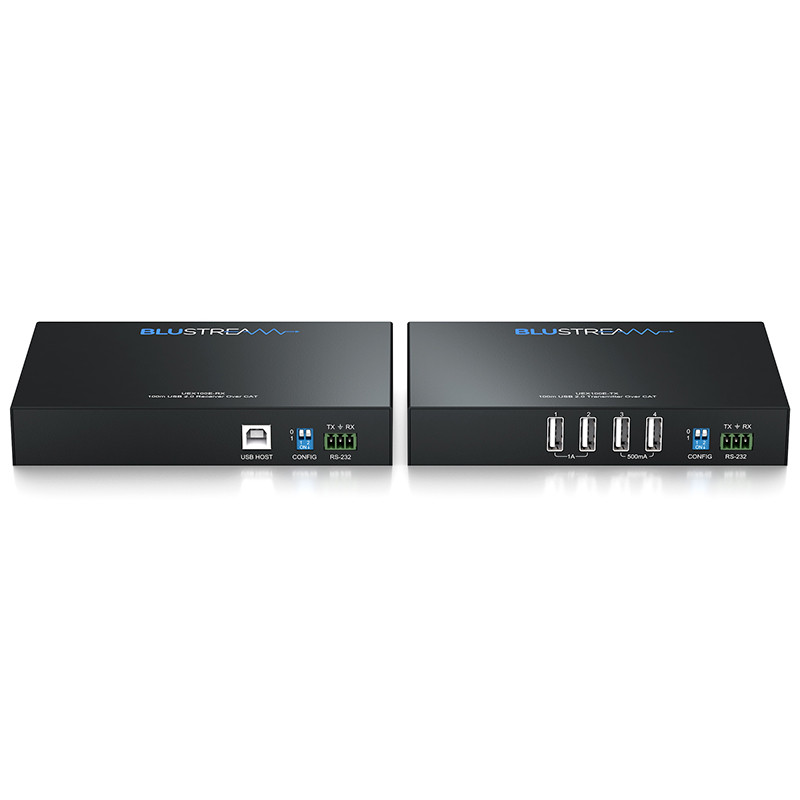

UEX100E-TX
• CAT Connectors: 1 x RJ45 connector, female
• USB Ports: 4 x USB-Type A
• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo Jack)
• Ethernet Port: 1 x RJ45 connector, female
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Config Switch: 2-pin DIP switch
• Power Supply: 24V/1.25A DC
• Product Dimensions (W x D x H ):  150mm x 100mm x 25mm (TX/RX)
• Shipping Weight: 1.6kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

Box Contents
1 x UEX100E-TX
1 x UEX100E-RX
1 x USB-A to USB-B cable (1m)
1 x 24V/1.25A DC power supply
2 x Mounting kits
1 x Quick Reference Guide
