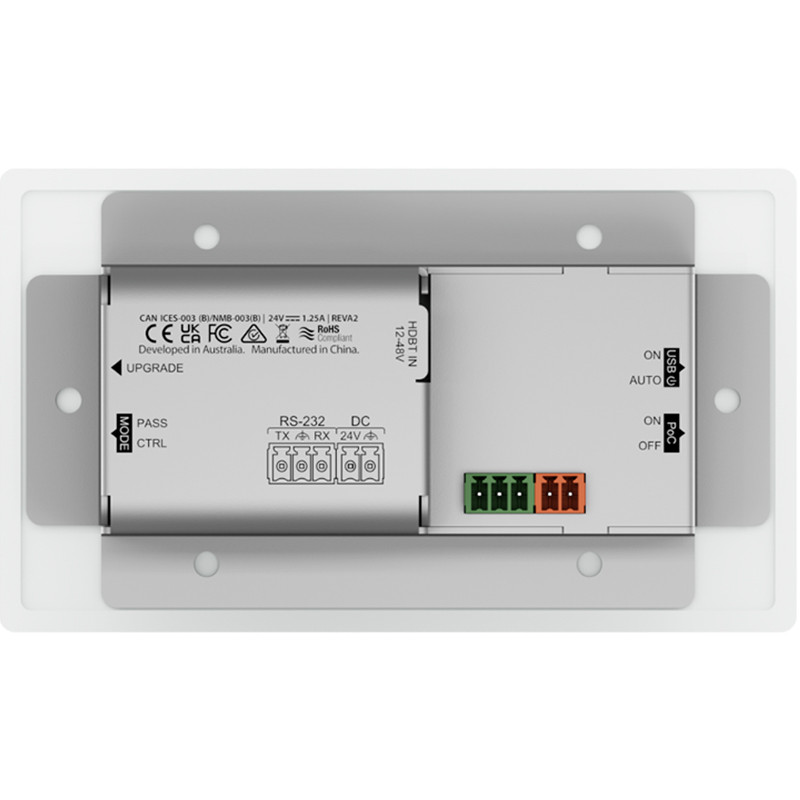

BLUSTREAM USB 3.2 Gen1 HDBaseT™ Extender EU Wall Plate - Device
The UEX3D-WP-EU is a USB Device solution utilises HDBaseT™ technology to allow for remote connectivity to a USB 3.2 Gen1 Host at distances of up to 100m over a single CAT6A cable in a dual EU / UK wall plate format. The UEX3D-WP-EU allows for 4 x USB Devices (2 x USB type A, and 2 x USB-C) to be connected to a compatible Blustream USB HDBaseT Receiver (Host) extender with support for a combined transmission data bandwidth of up to 5Gbps.
The UEX3D-WP-EU is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT link. The UEX3D-WP-EU is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices and other USB 3.2 Gen1 devices.
Key features
• USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB-C and 2 x USB-B ports for connection to USB devices
• Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
• Backwards compatible with USB 2.0 & 1.1 devices
• Combined USB3.2 Gen1 data transfer rate up to 5Gbps *
• Provides up to 3A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC)
• Supports bi-directional RS-232 when used with compatible HDBaseT™ products
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup required
Specifications
• CAT Connectors: 1 x RJ45 connector
• USB Device Ports: 2 x USB Type C female, 2 x USB Type A female
• Local power input: 1 x 2-Pin Phoenix connectorv
• Firmware Upgrade: 1 x Micro-USB
• RS-232: 1 x 3-Pin Phoenix connector
• Power Supply: 24V/1.5A DCv
• Dimensions (W x H x D): 136mm x 76mm x 46mm (without faceplate)
• Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm (faceplate)
• Mounting hole spacing: UK 121mm CTC, EU 60mm CTC
• Backbox Mounting Depth: 40mm (minimum), 47mm (recommended), UK or EU double gang
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature : -4°F to 140°F (-25°C to +70°C)
*Please note: This USB HDBaseT Extender product is not compatible with ‘DP Alt Mode’ signals.*
Box Contents
• 1 x UEX3D-WP-EU
• 1 x Magnetic Faceplate
• 1 x 24V/1.5A power supply
• 1 x RS-232 control cable (3-Pin to DB9)
• 1 x Quick Reference Card
ETA: 24 September 2024
