EVF-1151S-PIB

EV Single EVS15S, 400W, passive/biamp, EVCOAT, PI-weatherized, black

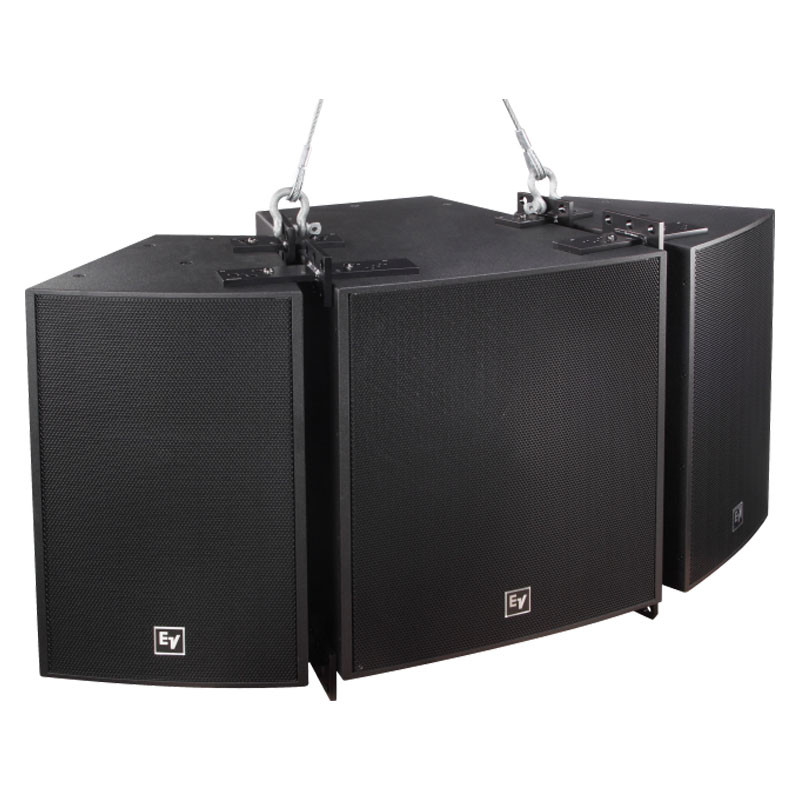

EVF-1151S single 15“ woofer more bass system is design to work as a low frequency reinforcement unit for EVF Series products, with equal footprint as the full range models, allows for perfect clustering in vertical and Horizontal groupings.



Every EVF trapezoidal enclosure is constructed out of weather-resistant plywood, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.



Key Features
• Enhanced bass for installations

• Low-distortion EVS15SB woofer
• 99 dB sensitivity, 131 dB maximum SPL

• Power: 400 W continuous, 1600 W peak
• Trapezoidal 13-ply plywood enclosure

• EVCoat, PI, or fiberglass (FG) finish
• M10 threaded suspension points (22)



Specifications
• Frequency Range (-10 dB): 46–124 kHz

• Suspension: 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
• Weatherized: No

• Nominal Impedance (Passive):Passive: 4 , Biamp: 8 Ω
• Speaker Type: Subwoofer

• Frequency Response (-3 dB)¹: 67–95 Hz
• Max. SPL/1m (calc)²: 131dB

• Coverage (Nominal -6 dB) H: 360°
• LF Transducer: 15" EVS15SB driver

• System Power Handling (Continuous/Program/Peak): 400 , 800 , 1600 Watts
• Enclosure Material: 13-ply weather-resistant birch

• Grille: Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
• Sensitivity 1 W/1 m: 99dB

• Height: 30.26" (768.6mm)
• Width: 18.5" (470mm)

• Recommended High-Pass Frequency: 35Hz
• Depth: 18.39" (467mm)

• Weight Net: 62.61lbs (28.4kg)
• Available Coverage Patterns (Nominal -6 dB) HxV: Omnidirectional in normal operating range°

• Environmental Specs: Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
• Internal Passive Crossover Frequency: Hz

• Internal Passive Low-Pass Filter: 100 (12 dB per octave)
• Coverage (Nominal -6 dB): Omnidirectional in normal operating range

• Passive Power Handling: 1600W peak
• Net Weight: 62.6 lb (28.4 kg)

• Dimensions (H x W x D): 30.26" x 18.5" x 18.4" (768.6 x 470 x 467 )mm
• Input Connections: Euroblock; PI and FG versions include dual gland nut input panel cover
