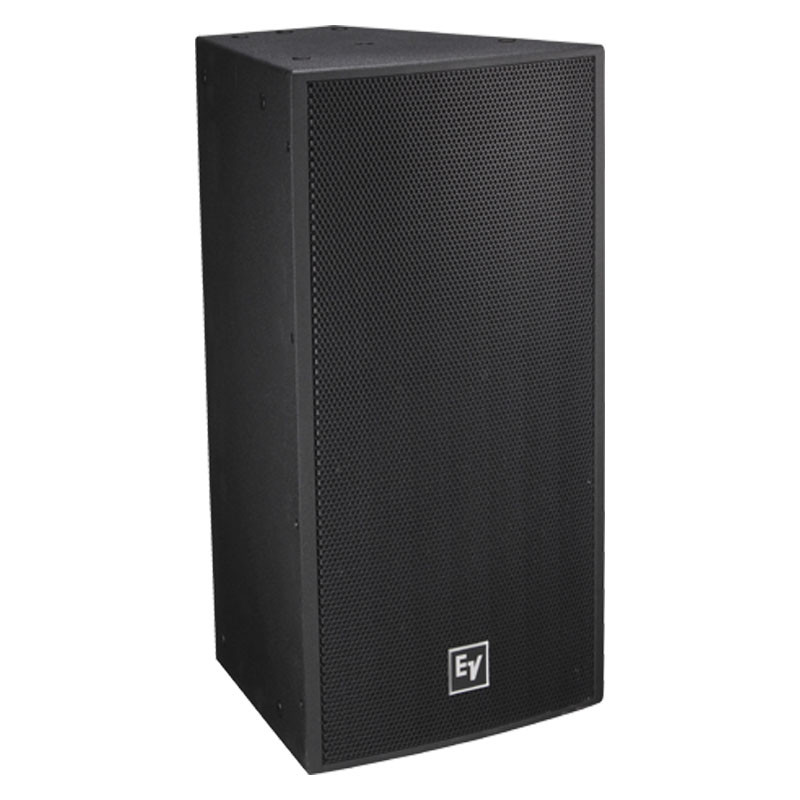

EVF-1122S/66-FGB

EV 60 x 60, Fiberglass, black SMXND2B - 500W Cont EN54-24

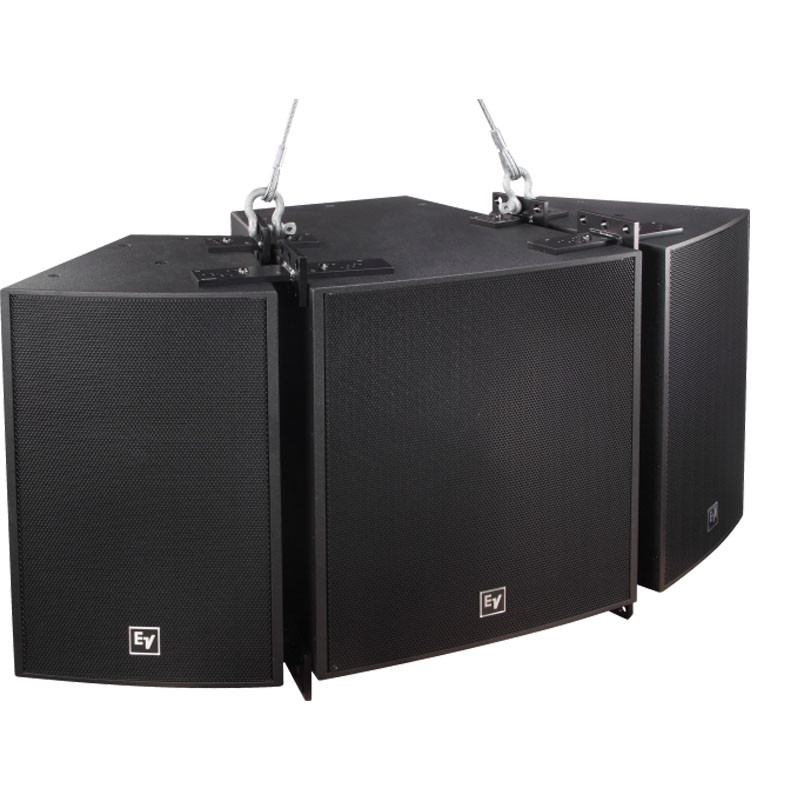

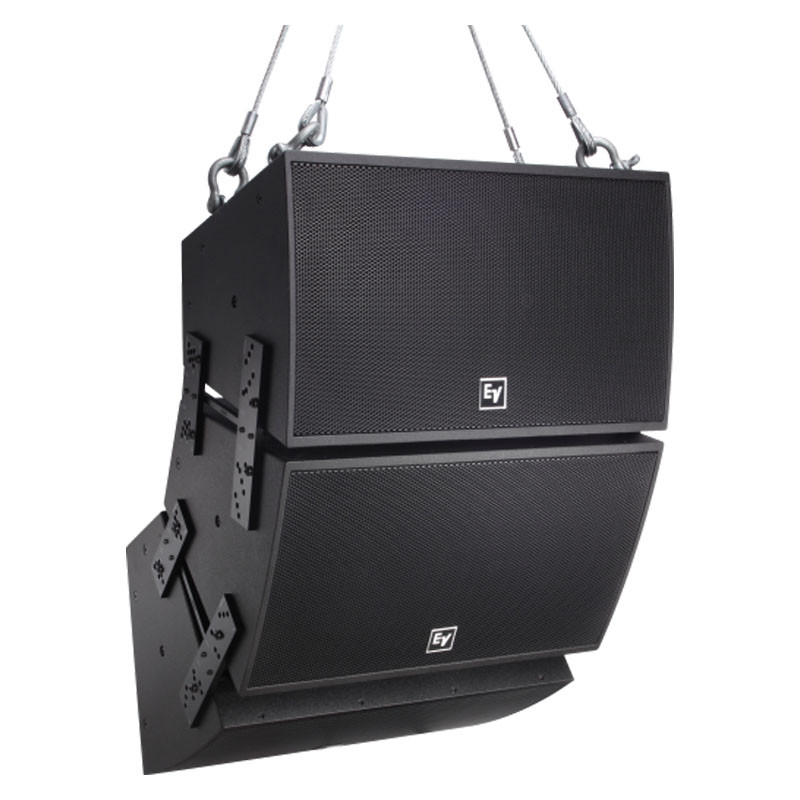

Every EVF trapezoidal enclosure is constructed out of weather-resistant plywood, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.



Key Features
• 2-inch ND2B titanium HF compression driver

• Rotatable Constant-directivity waveguide
• Six available patterns with coverage from 60º to 120º

• 98 dB sensitivity, 131 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak

• 4th-order passive crossover with HF protection
• Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)



Specifications
• Frequency Range (-10 dB): 49 Hz – 19 kHz

• Suspension: 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
• Weatherized: No

• Minimum Impedance: 6Ω
• Nominal Impedance (Passive): 8Ω

• HF Transducer: 2" ND2B diaphragm compression driver
• Speaker Type: Full-Range, Two-Way

• Frequency Response (-3 dB)¹: 58 Hz – 16 Hz
• Max. SPL/1m (calc)²: 131 dB

• Coverage (Nominal -6 dB) H: 60°
• LF Transducer: 12" SMX2121 driver

• Coverage (Nominal -6 dB) V: 60°
• System Power Handling (Continuous/Program/Peak): 500 , 1000 , 2000 Watts

• Crossover Frequency: 1450Hz
• Enclosure Material: 13-ply weather-resistant birch

• Grille: Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
• Sensitivity 1 W/1 m: 98 dB

• Height: 30.26" (768.6mm)
• Width: 16" (406.3mm)

• Recommended High-Pass
• Frequency: 65Hz

• Depth: 16.27" (413.3mm)
• Weight Net: 63.05lbs (28.6kg)

• Available Coverage Patterns (Nominal -6 dB) HxV: 60 x 60°
• Environmental Specs: Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55

• Internal Passive Crossover Frequency: 1450Hz
• Passive Power Handling: 2000W peak

• Net Weight: 63.1 lb (28.6 kg)
• Dimensions (H x W x D): 30.26" x 16" x 16.27" (768.6 x 406.3 x 413.3 )mm

• Input Connections: Euroblock; PI and FG versions include dual-gland-nut input-panel cover
