Electro-Voice

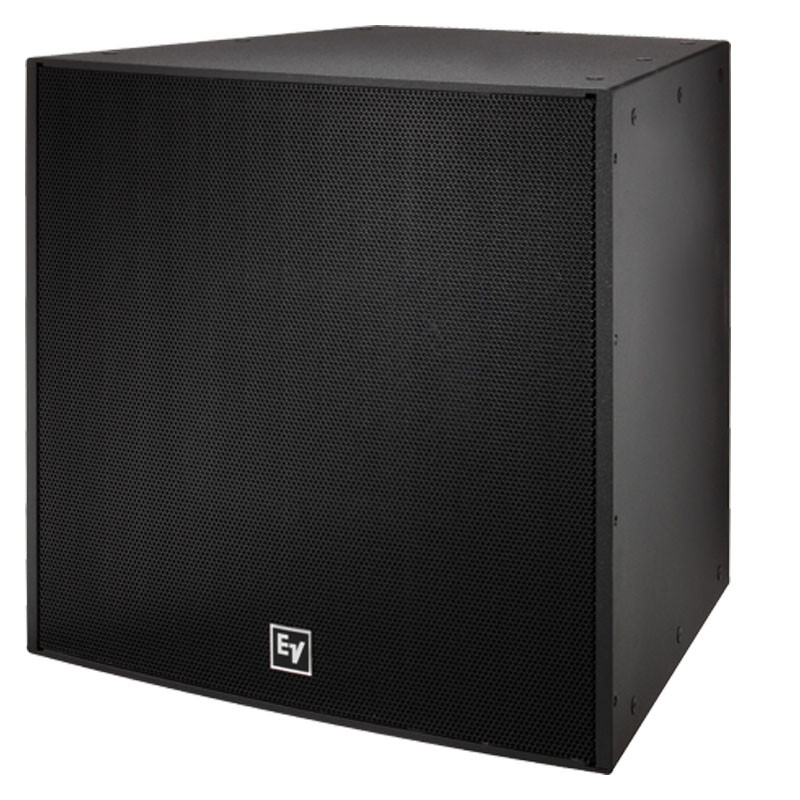

EVH-1152D/94-FGB

EV 90 x 40, Fiberglass, black SMX/DH7N

Färg / Material

Baselement

Logga in för priser

Artikelnr. EVH-1152D/94-FGB

EV 90 x 40, Fiberglass, black SMX/DH7N

EVH-1152D/94 features a 90° x 40° rotatable waveguide, design for medium field medium throw raw spread coverage pattern.

Key features
• Ideal for reverberant spaces

• Pattern control maintained down to 500 Hz
• 15-inch SMX2151 woofer

• 3-inch DH7N titanium/neodymium HF compression driver
• Rotatable Constant-directivity waveguide

• Six available coverage patterns from 40º x 30º to 90º x 90º
• 106 dB sensitivity, 139 dB maximum SPL

• Power handling: 500 W continuous, 2000 W peak
• 4th-order passive crossover with HF protection

• Trapezoidal enclosure in three finishes: EVCoat, FG or PI
• M10 threaded suspension points (28)

Specifications
• Frequency Range (-10 dB): 50 Hz - 20 kkHz

• Suspension: (28) M10 threaded suspension points
• Minimum Impedance: 6.0Ω

• Nominal Impedance (Passive): 8Ω
• HF Transducer: DH7N, 3" (76 mm) diaphragm compression driver

• Frequency Response (-3 dB)¹: 60 Hz - 17 kHz
• Max. SPL/1m (calc)²: 138dB

• Coverage (Nominal -6 dB) H: 90°
• LF Transducer: SMX2151, 15" (381 mm) driver

• Coverage (Nominal -6 dB) V: 40°
• System Power Handling (Continuous/Program/Peak): 500/1000/2000 Watts

• Crossover Frequency: 1300Hz
• Enclosure Material: 13-ply weather-resistant birch with EVCoatTM

• Grille: 16 GA powder-coated galvanneal with rotatable logo
• Sensitivity 1 W/1 m: 105dB

• Height: 30.26" (768.6mm)
• Width: 30.26" (768.6mm)

• Recommended High-Pass Frequency: 60Hz
• Depth: 26.78" (680.1mm)

• Weight Net: 145.73lbs (66.1kg)
• Shipping Weight: 160.72lbs (72.9kg)

• Input Connections: Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
