EVID4.2W

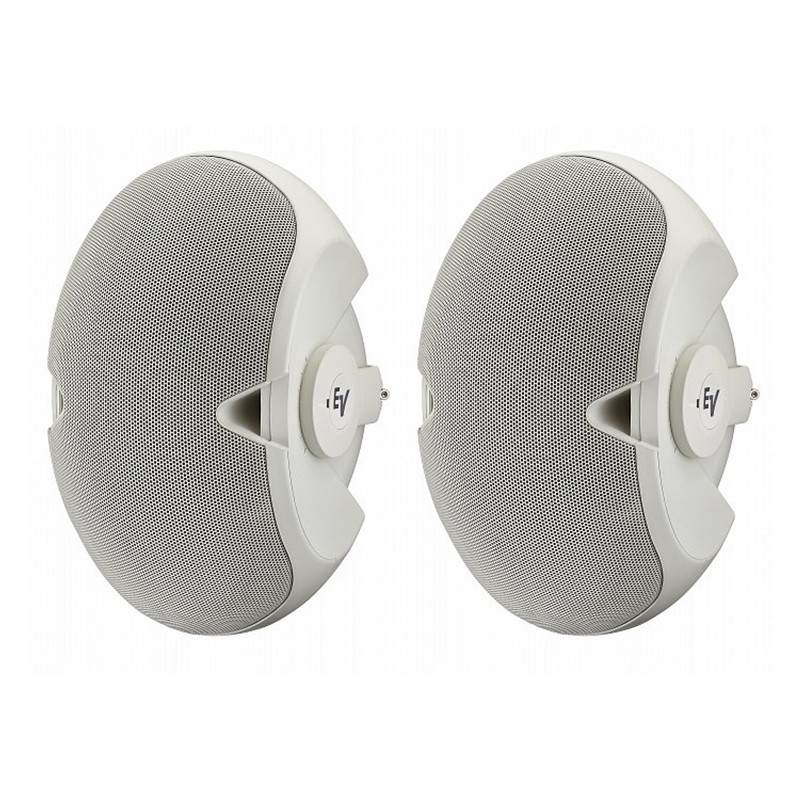

EV EVID Surface Mount Speaker, 2x4"/1", 100W, 89dB, 120°x80°, in/outdoor, white (Pair)
EV EVID Surface Mount Speaker, 2x4"/1", 100W, 89dB, 120°x80°, in/outdoor, white (Pair)
EVID 4.2
Dual 4" 2‑way surface-mount loudspeaker
• Compact full range
• Ideal for restaurants, bars, patios, and retail
• Vented LF enclosure
• 1-inch titanium diaphragm HF driver with neodymium magnetic structure
• Coherent Coverage Waveguide
• Full-bandwidth overload protection (LF and HF)
• Elliptical weather-resistant ABS enclosure
• Paintable black or white finish
• Magnetically shielded for video applications
• Strong-Arm Mount for easy, flexible aiming
• "T" version for 70 or 100 V distributed systems
The EVID 4.2 is a very compact full range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. It’s shape and size make it nearly invisible for use in background/foreground music systems for restaurants, bars, patios, retail, and other applications The 4.2’s three-dimensional elliptic baffle symmetrically locates the 1” Ti high frequency element with a Coherent Coverage Waveguide in front of, and between the 4” low frequency drivers. This careful shaping, location, and 10° splaying of the lf units provides coverage control by the resulting line array. Lobing is controlled by physically “shadowing” the lf transducers from each other over the bandwidth they would normally exhibit interference. EVID’s mounting system provides greater range of aiming angles in both horizontal and vertical planes than other types. The curved grille features designed-in weather resistance and a hidden leash for safety. All models are available in black or white, and can easily be painted to match the décor. Transformer versions are also available for constant voltage systems.
EVID 4.2
Dual 4" 2‑way surface-mount loudspeaker
• Compact full range
• Ideal for restaurants, bars, patios, and retail
• Vented LF enclosure
• 1-inch titanium diaphragm HF driver with neodymium magnetic structure
• Coherent Coverage Waveguide
• Full-bandwidth overload protection (LF and HF)
• Elliptical weather-resistant ABS enclosure
• Paintable black or white finish
• Magnetically shielded for video applications
• Strong-Arm Mount for easy, flexible aiming
• "T" version for 70 or 100 V distributed systems
The EVID 4.2 is a very compact full range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. It’s shape and size make it nearly invisible for use in background/foreground music systems for restaurants, bars, patios, retail, and other applications The 4.2’s three-dimensional elliptic baffle symmetrically locates the 1” Ti high frequency element with a Coherent Coverage Waveguide in front of, and between the 4” low frequency drivers. This careful shaping, location, and 10° splaying of the lf units provides coverage control by the resulting line array. Lobing is controlled by physically “shadowing” the lf transducers from each other over the bandwidth they would normally exhibit interference. EVID’s mounting system provides greater range of aiming angles in both horizontal and vertical planes than other types. The curved grille features designed-in weather resistance and a hidden leash for safety. All models are available in black or white, and can easily be painted to match the décor. Transformer versions are also available for constant voltage systems.
- Typ
- Passiv fullrange
- Frekvensomfång
- 65 - 20.000 Hz
- Kontakter in
- Phoenix
- Mått (BxHxD)
- 175 x 310 x 216 mm
- Vikt
- 3,9 kg
- Färg
- Vit
- Spridning
- H x V 120 x 80 °
- Max SPL 1m
- 115 dB
- Baselement
- 2 x 4"
- Diskantelement
- 1"
- Material
- ABS (kan lackeras)
- Effekttålighet
- 100 W
- Känslighet 1W/1m
- 89 dB
- Impedans
- 8 Ω
