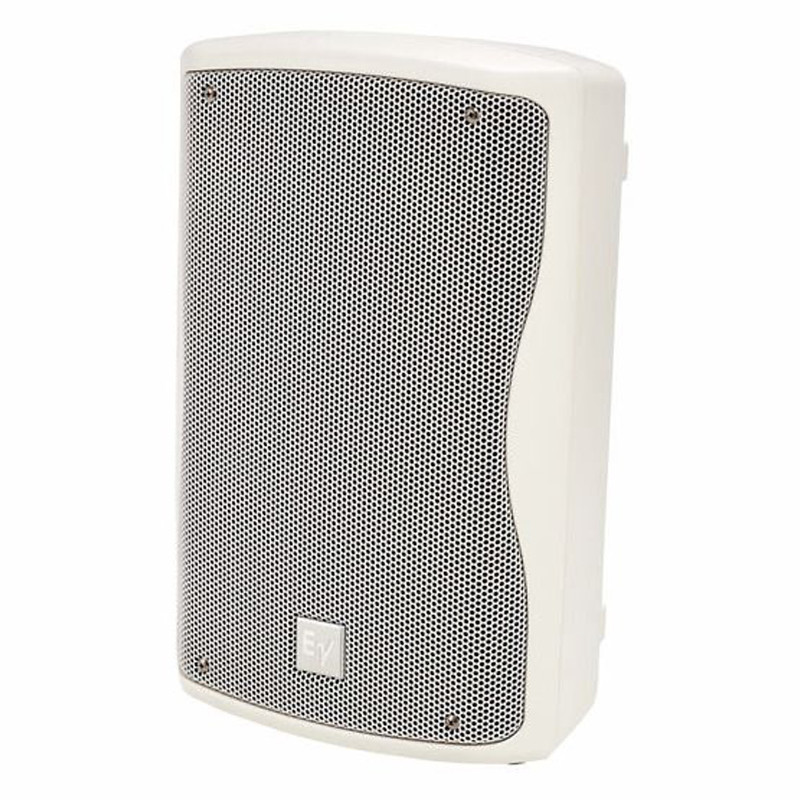

ZX1i-90 White
EV 8" 2-Way, 200 W, 90°x50°, install version, Strong Arm Mount; white; EN54-24
EV 8" 2-Way, 200 W, 90°x50°, install version, Strong Arm Mount; white; EN54-24
▪ Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
▪ Patented ASC (Automatic Saturation Compensation) on Transformer Versions
▪ EV8L 8 inch Weatherized Cone High-Output LF Transducer
▪ DH2005 1 inch Exit True Compression Driver
▪ EN54-24 type B certification 1438/CPR/0323 with TC-ZX1i cover (Sold separately) installed (Only available in select regions)
The Electro-Voice ZX1i is the standard of no compromise audio performance and versatility in an easy to install compact package. The high-tech enclosure uses injection-molded high-impact ABS resin to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response. Two rotatable horn coverage patterns are available; 90° x 50° for longer throw and cluster applications, 100° x 100° for broad even dispersion. A multilayer grille with hydrophobic cloth and weatherized components allows both indoor and outdoor use. An optional weatherized input panel cover with a gland nut is available for additional protection.
Installing the ZX1i is quick and easy with the included QuickSAM mounting system. The QuickSAM allows the installer to simply snap the speaker onto the bracket, and then tighten it to the desired position. For array mounting, there is an optional AB-ZE array bracket kit which allows multiple units to be mounted together in a variety of configurations. The ZX1i’s long excursion, high output 8 inch woofer with a weatherized treated cone delivers smooth low-frequency performance with exceptional reliability.
▪ Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
▪ Patented ASC (Automatic Saturation Compensation) on Transformer Versions
▪ EV8L 8 inch Weatherized Cone High-Output LF Transducer
▪ DH2005 1 inch Exit True Compression Driver
▪ EN54-24 type B certification 1438/CPR/0323 with TC-ZX1i cover (Sold separately) installed (Only available in select regions)
The Electro-Voice ZX1i is the standard of no compromise audio performance and versatility in an easy to install compact package. The high-tech enclosure uses injection-molded high-impact ABS resin to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response. Two rotatable horn coverage patterns are available; 90° x 50° for longer throw and cluster applications, 100° x 100° for broad even dispersion. A multilayer grille with hydrophobic cloth and weatherized components allows both indoor and outdoor use. An optional weatherized input panel cover with a gland nut is available for additional protection.
Installing the ZX1i is quick and easy with the included QuickSAM mounting system. The QuickSAM allows the installer to simply snap the speaker onto the bracket, and then tighten it to the desired position. For array mounting, there is an optional AB-ZE array bracket kit which allows multiple units to be mounted together in a variety of configurations. The ZX1i’s long excursion, high output 8 inch woofer with a weatherized treated cone delivers smooth low-frequency performance with exceptional reliability.
- Typ
- 2-vägs passivt frekvensdelad
- Frekvensomfång
- 60 - 20.000 Hz
- Kontakter in
- Neutrik Speakon NL4
- Mått (BxHxD)
- 282 x 457 x 264 mm
- Vikt
- 8,4 kg
- Färg
- Vit
- Spridning
- H x V 90 x 50 °
- Max SPL 1m
- 123 dB
- Delningsfrekvens
- 1.700 Hz
- Baselement
- 8" EV8L
- Diskantelement
- 1" DH2005 kompressordriver
- Material
- Hölje: Extra tålig polymer, galler:Polyesterklädd galvaniserad stål
- Effekttålighet
- RMS/Toppvärde: 200/800 W
- Känslighet 1W/1m
- 94 dB
- Impedans
- 8 Ω
